H2155-01
ObsoleteHarwin Inc.

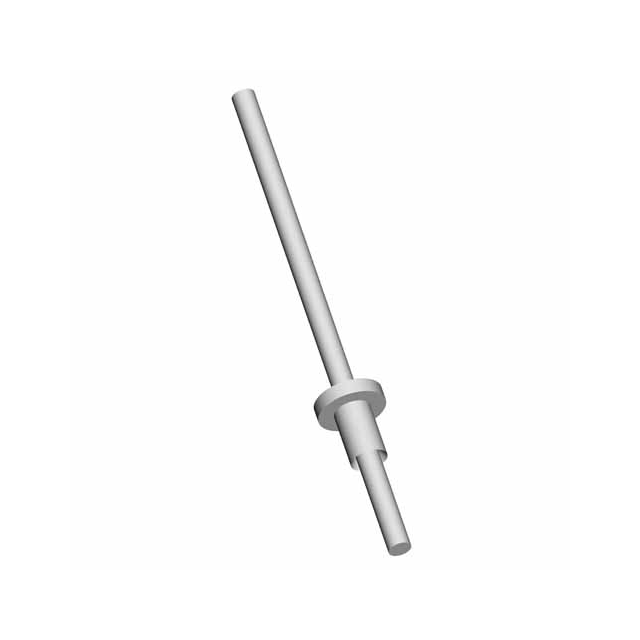

CONN PC PIN CIRC 0.031DIA TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H2155-01
ObsoleteHarwin Inc.
CONN PC PIN CIRC 0.031DIA TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H2155-01 |
|---|---|
| Board Thickness | 1.6 mm |
| Board Thickness | 0.063 in |
| Contact Finish | Tin |
| Contact Material | Brass |
| Flange Diameter [diameter] | 2.36 mm |
| Flange Diameter [diameter] | 0.093 in |
| Insulation | Non-Insulated |
| Length - Above Flange | 0.48 in |
| Length - Above Flange | 12.19 mm |
| Length - Below Flange [x] | 5.69 mm |
| Length - Below Flange [x] | 0.224 in |
| Length - Overall | 18.26 mm |
| Length - Overall [x] | 0.719 in |
| Mounting Hole Diameter [Max] [diameter] | 0.054 in |
| Mounting Hole Diameter [Max] [diameter] | 1.37 mm |
| Mounting Hole Diameter [Min] [diameter] | 0.05 " |
| Mounting Hole Diameter [Min] [diameter] | 1.27 mm |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.79 mm |
| Pin Size - Above Flange [diameter] | 0.031 in |
| Terminal Style | Double End |
| Terminal Type | PC Pin |
| Termination | Swage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
H2155 Series
PC Pin Terminal Connector Through Hole Tin 0.031" (0.79mm) Dia
