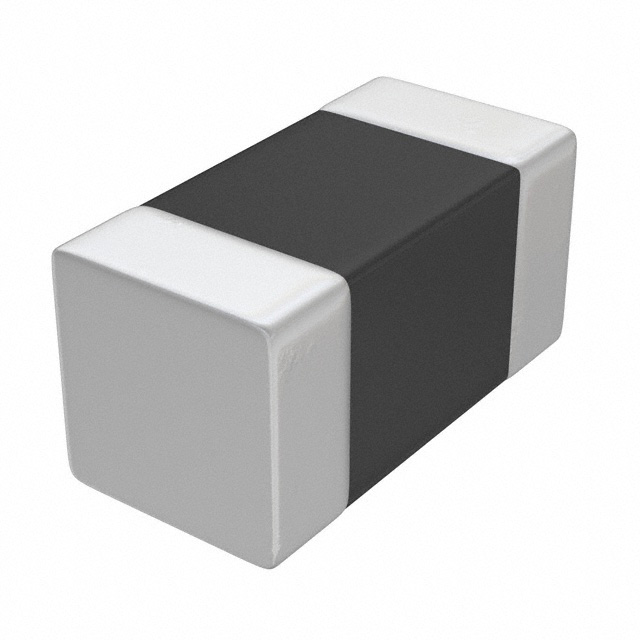

NCP03XH103F05RL

Active

Murata Power Solutions Inc.

THERMISTOR NTC 10KOHM 3380K 0201

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

THERMISTOR NTC 10KOHM 3380K 0201

Technical Specifications

Parameters and characteristics for this part

Part	B25/100	B25/85	Power - Max [Max]	Resistance Tolerance	Mounting Type	Package / Case	Package / Case	B Value Tolerance	B25/50	Resistance in Ohms @ 25°C	Operating Temperature [Max]	Operating Temperature [Min]	Resistance in Ohms @ 25°C
Murata Power Solutions Inc. NCP03XM222J05RL	3560 K	3545 K	100 mW	5 %	Surface Mount	0603 Metric	0201	1 %	3500 K	2.2 kOhms	125 °C	-40 °C
Murata Power Solutions Inc. NCP03XM102J05RL	3560 K	3545 K	100 mW	5 %		0603 Metric	0201	1 %	3500 K		125 °C	-40 °C	1k
Murata Power Solutions Inc. NCP03XH153E05RL	3455 K	3434 K	100 mW	3 %		0603 Metric	0201	1 %	3380 K	15 kOhms	125 °C	-40 °C
Murata Power Solutions Inc. NCP03XH103F05RL	3455 K	3434 K	100 mW	1 %		0603 Metric	0201	1 %	3380 K		125 °C	-40 °C	10k
Murata Power Solutions Inc. NCP03XM472J05RL	3560 K	3545 K	100 mW	5 %		0603 Metric	0201	1 %	3500 K	4.7 kΩ	125 °C	-40 °C
Murata Power Solutions Inc. NCP03XH682E05RL	3455 K	3434 K	100 mW	3 %	Surface Mount	0603 Metric	0201	1 %	3380 K	6.8 kOhms	125 °C	-40 °C
Murata Power Solutions Inc. NCP03XV103J05RL	3944 K	3934 K	100 mW	5 %	Surface Mount	0603 Metric	0201	1 %	3900 K		125 °C	-40 °C	10k
Murata Power Solutions Inc. NCP03XH223E05RL	3455 K	3434 K	100 mW	3 %		0603 Metric	0201	1 %	3380 K		125 °C	-40 °C	22k
Murata Power Solutions Inc. NCP03XH103E05RL	3455 K	3434 K	100 mW	3 %		0603 Metric	0201	1 %	3380 K		125 °C	-40 °C	10k
Murata Power Solutions Inc. NCP03XH103J05RL	3455 K	3434 K	100 mW	5 %	Surface Mount	0603 Metric	0201	1 %	3380 K		125 °C	-40 °C	10k

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

NTC Thermistor 10k 0201 (0603 Metric)
