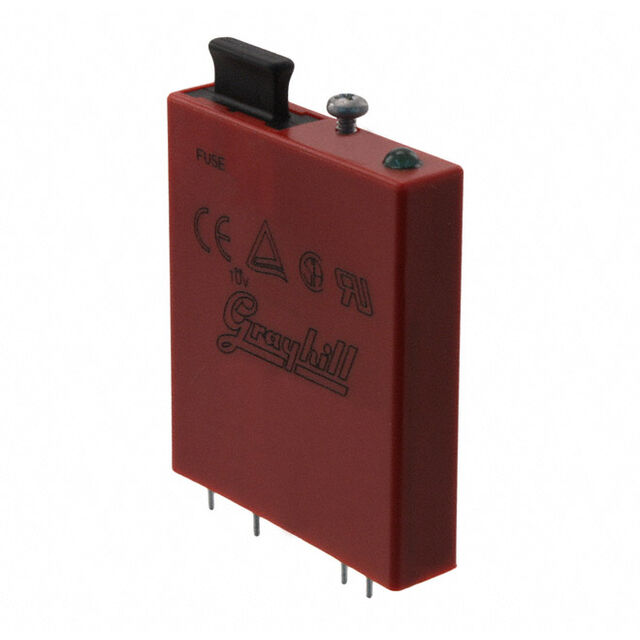

70G-ODC5B

Active

Grayhill Inc.

DC OUTPUT MODULE 3.5A

Search across all available documentation for this part.

Active

Grayhill Inc.

DC OUTPUT MODULE 3.5A

Technical Specifications

Parameters and characteristics for this part

Specification	70G-ODC5B

Color	Red
Current - Output	3.5 A
Features	Status LED(s), Fused, Hold Down Screw
Style	G5
Turn Off Time	0.5 ms
Turn On Time	0.075 ms
Type	DC Output Module
Voltage - Input	5 VDC
Voltage - Output [Max]	60 VDC
Voltage - Output [Min]	3 V

Part	Turn Off Time	Features	Voltage - Input	Type	Voltage - Output [Min]	Voltage - Output [Max]	Color	Style	Current - Output	Current - Input	Turn On Time
Grayhill Inc. 70G-OAC15	8.33 ms	Fused Hold Down Screw Status LED(s)	15 VDC	AC Output Module	24 VAC	140 VAC	Black	G5	3.5 A	12 mA	8.33 ms
Grayhill Inc. 70G-ODC15	0.05 ms	Fused Hold Down Screw Status LED(s)	15 VDC	DC Output Module	3 V	60 VDC	Red	G5	3.5 A	9 mA	0.02 ms
Grayhill Inc. 70G-ODC5B	0.5 ms	Fused Hold Down Screw Status LED(s)	5 VDC	DC Output Module	3 V	60 VDC	Red	G5	3.5 A		0.075 ms
Grayhill Inc. 70G-OAC24	8.33 ms	Fused Hold Down Screw Status LED(s)	24 V	AC Output Module	24 VAC	140 VAC	Black	G5	3.5 A	8 mA	8.33 ms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

DC Output Module Output Module 3.5A 3 ~ 60VDC Output 5VDC Supply
