Q5-3X-1-01-SS25M

Active

Qualtek

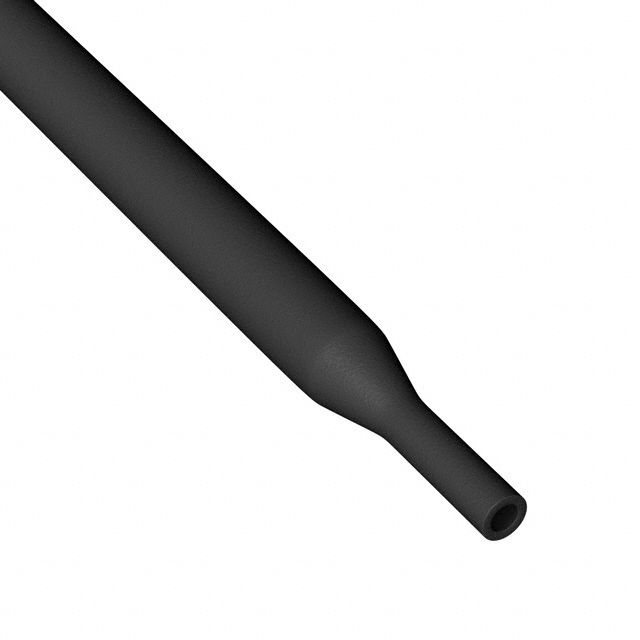

HEATSHRINK 0.945" X 82' BLACK

Search across all available documentation for this part.

Active

Qualtek

HEATSHRINK 0.945" X 82' BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	Q5-3X-1-01-SS25M

Color	Black
Features	Adhesive Lined, Flame Retardant
Inner Diameter - Recovered [diameter]	0.315 in
Inner Diameter - Recovered [diameter]	8 mm
Inner Diameter - Supplied [diameter]	24 mm
Inner Diameter - Supplied [diameter]	0.945 "
Length	25 m
Length	82 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.094 "
Recovered Wall Thickness	2.4 mm
Shelf Life	60 Months
Shrink Temperature	80 °C
Shrinkage Ratio [Max]	3
Shrinkage Ratio [Min]	1
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	-10 °C, -50 °F
Type	Tubing, Flexible

Part	Length	Length	Type	Shrink Temperature	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Features	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Color	Shelf Life	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Material	Operating Temperature [Min]	Operating Temperature [Max]	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]
Qualtek Q5-3X-1-01-SS25M	25 m	82 ft	Tubing Flexible	80 °C	-50 °F -10 °C	40 °C	Adhesive Lined Flame Retardant	1	3	Black	60 Months	24 mm	0.945 "	Polyolefin (PO)	-55 °C	125 °C	0.094 "	2.4 mm	0.315 in	8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Tubing, Flexible 0.945" (24.00mm) 3 to 1 Black 82.0' (25.0m)
