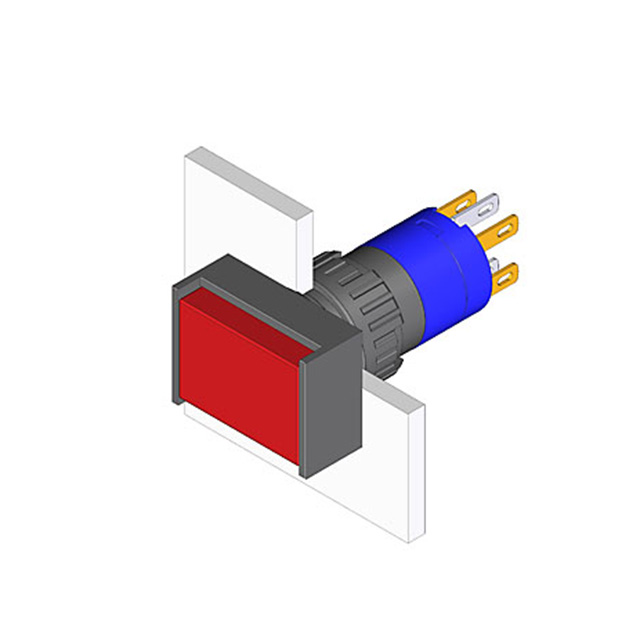

51-261.022

Active

EAO

SWITCH PUSH BUTTON N.O./N.C. DPST RECTANGULAR BUTTON 5A 250VAC MAINTAINED PANEL MOUNT SOLDER

Search across all available documentation for this part.

Active

EAO

SWITCH PUSH BUTTON N.O./N.C. DPST RECTANGULAR BUTTON 5A 250VAC MAINTAINED PANEL MOUNT SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	51-261.022

Actuator Marking	No Marking
Actuator Type	Rectangular, Button (Not Included)
Circuit	DPST-NO/NC
Current Rating (Amps)	5 A
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Off, Off-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	250 V

Part	Termination Style	Termination Style	Termination Style	Mechanical Life	Voltage Rating - AC	Type	Current Rating (Amps)	Switch Function	Mounting Type	Ingress Protection	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Actuator Marking	Circuit
EAO 51-261.022	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	250 V	Standard	5 A	Off-On On-Off	Panel Mount Front	IP65 - Dust Tight Water Resistant	16 mm	55 °C	-25 °C	Rectangular Button (Not Included)	No Marking	DPST-NO/NC
EAO 51-261.025		Solder Lug		1000000 Cycles	250 V	Standard	5 A	Off-On On-Off	Panel Mount Front	IP65 - Dust Tight Water Resistant	16 mm	55 °C	-25 °C	Rectangular Button (Not Included)	No Marking	DPST-NO/NC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPST-NO/NC Standard Panel Mount, Front
