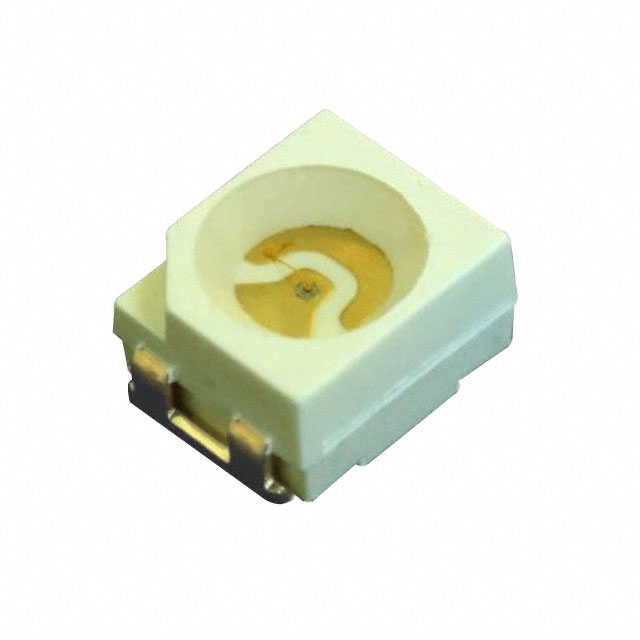

VCEB1104LS-TR
Stanley Electric Co
SINGLE COLOR LED, BLUE, WATER CLEAR, 2.4MM, LCC-2
Deep-Dive with AI
Search across all available documentation for this part.
VCEB1104LS-TR
Stanley Electric Co
SINGLE COLOR LED, BLUE, WATER CLEAR, 2.4MM, LCC-2
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VCEB1104LS-TR |
|---|---|
| Color | Blue |
| Configuration | Standard |
| Current - Test | 10 mA |
| Height (Max) [Max] [z] | 2.1 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 2.4 mm |
| Lens Transparency | Clear |
| Millicandela Rating | 60 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-PLCC |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | 2-PLCC |
| Viewing Angle | 115 ° |
| Voltage - Forward (Vf) (Typ) | 3.1 V |
| Wavelength - Dominant | 466 nm |
| Wavelength - Peak | 476 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.64 | |
| 10 | $ 0.42 | |||
| 100 | $ 0.28 | |||
| 1000 | $ 0.22 | |||
| Digi-Reel® | 1 | $ 0.64 | ||
| 10 | $ 0.42 | |||
| 100 | $ 0.28 | |||
| 1000 | $ 0.22 | |||
| Tape & Reel (TR) | 2000 | $ 0.19 | ||
| 6000 | $ 0.18 | |||
| 10000 | $ 0.18 | |||
| 50000 | $ 0.17 | |||
Description
General part information
VCEB1104 Series
Blue 466nm LED Indication - Discrete 3.1V 2-PLCC
