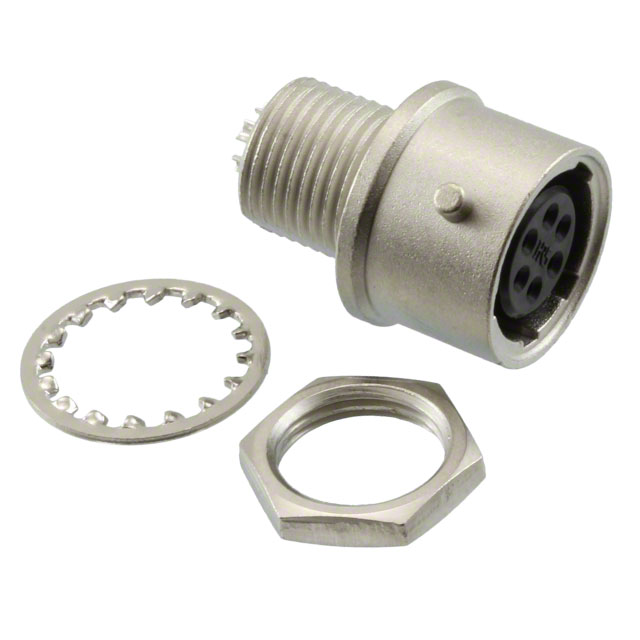

HR11-9BR-6S(73)

LTB

Hirose Electric USA, Inc.

CIRCULAR CONNECTOR, 6 CONTACT(S), ZINC ALLOY AND BRASS, FEMALE, RECEPTACLE,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HR11-9BR-6S(73)

LTB

Hirose Electric USA, Inc.

CIRCULAR CONNECTOR, 6 CONTACT(S), ZINC ALLOY AND BRASS, FEMALE, RECEPTACLE,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HR11-9BR-6S(73)

Applications	Instrumentation, Communication Systems
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Finish Thickness - Mating	118.1 µin
Contact Finish Thickness - Mating	3 µm
Contact Material	Phosphor Bronze
Current Rating (Amps)	2 A
Fastening Type	Bayonet Lock
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	6
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	9
Shielding	Unshielded
Voltage Rating	100 VAC, 140 VDC

HR11 Series

Part	Shell Material	Color	Fastening Type	Applications	Orientation	Mounting Type	Shell Finish	Current Rating (Amps)	Features	Shell Size - Insert	Connector Type	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Material Flammability Rating	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shielding	Primary Material	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Contact Material	Insert Material	Backshell Material, Plating	Mounting Feature
Hirose Electric USA, Inc. HR11-9BP-6P(73)	Zinc Alloy	Silver	Bayonet Lock	Communication Systems Instrumentation	Keyed	Free Hanging (In-Line)	Nickel	2 A	Backshell Cable Clamp Coupling Nut	9	Male Pins Plug	100 VAC 140 VDC	-10 °C	60 °C	Silver	UL94 V-0	6	118.1 µin	3 µm	Unshielded	Metal	5.5 mm	0.217 in	0.177 in	4.5 mm	Brass	Nylon Polyamide (PA)	Brass Nickel
Hirose Electric USA, Inc. HR11-9BPB-6P(73)	Zinc Alloy	Silver	Bayonet Lock	Communication Systems Instrumentation	Keyed	Free Hanging (In-Line)	Nickel	2 A	Backshell Clamp Coupling Nut Strain Relief	9	Male Pins Plug	100 VAC 140 VDC	-10 °C	60 °C	Silver	UL94 V-0	6	118.1 µin	3 µm	Unshielded	Metal	5.5 mm	0.217 in	0.177 in	4.5 mm	Brass	Nylon Polyamide (PA)	Brass Nickel
Hirose Electric USA, Inc. HR11-9BJB-6P(73)	Zinc Alloy	Silver	Bayonet Lock	Communication Systems Instrumentation	Keyed	Free Hanging (In-Line)	Nickel	2 A	Backshell Strain Relief	9	Jack Male Pins	100 VAC 140 VDC	-10 °C	60 °C	Silver		6			Unshielded	Metal	5.5 mm	0.217 in	0.177 in	4.5 mm	Brass	Nylon Polyamide (PA)
Hirose Electric USA, Inc. HR11-9BJB-4S(73)	Zinc Alloy	Silver	Bayonet Lock	Communication Systems Instrumentation	Keyed	Free Hanging (In-Line)	Nickel	2 A	Backshell Strain Relief	9	Female Sockets Jack	100 VAC 140 VDC	-10 °C	60 °C	Silver		4			Unshielded	Metal	5.5 mm	0.217 in	0.177 in	4.5 mm	Phosphor Bronze	Nylon Polyamide (PA)
Hirose Electric USA, Inc. HR11-9BR-6P(73)	Zinc Alloy	Silver	Bayonet Lock	Communication Systems Instrumentation	Keyed		Nickel	2 A		9	Male Pins Receptacle	100 VAC 140 VDC	-10 °C	60 °C	Silver	UL94 V-0	6			Unshielded	Metal					Brass	Nylon Polyamide (PA)		Bulkhead - Rear Side Nut
Hirose Electric USA, Inc. HR11-9BP-6S(73)	Zinc Alloy	Silver	Bayonet Lock	Communication Systems Instrumentation	Keyed	Free Hanging (In-Line)	Nickel	2 A	Backshell Cable Clamp Coupling Nut	9	Female Sockets Plug	100 VAC 140 VDC	-10 °C	60 °C	Silver	UL94 V-0	6	118.1 µin	3 µm	Unshielded	Metal	5.5 mm	0.217 in	0.177 in	4.5 mm	Phosphor Bronze	Nylon Polyamide (PA)	Brass Nickel
Hirose Electric USA, Inc. HR11-9BPB-4P(73)	Zinc Alloy	Silver	Bayonet Lock	Communication Systems Instrumentation	Keyed	Free Hanging (In-Line)	Nickel	2 A	Backshell Clamp Coupling Nut Strain Relief	9	Male Pins Plug	100 VAC 140 VDC	-10 °C	60 °C	Silver	UL94 V-0	4	118.1 µin	3 µm	Unshielded	Metal	5.5 mm	0.217 in	0.177 in	4.5 mm	Brass	Nylon Polyamide (PA)	Brass Nickel
Hirose Electric USA, Inc. HR11-9BR-6S(73)	Zinc Alloy	Silver	Bayonet Lock	Communication Systems Instrumentation	Keyed		Nickel	2 A		9	Receptacle Female Sockets	100 VAC 140 VDC	-10 °C	60 °C	Silver	UL94 V-0	6	118.1 µin	3 µm	Unshielded	Metal					Phosphor Bronze	Nylon Polyamide (PA)		Bulkhead - Rear Side Nut
Hirose Electric USA, Inc. HR11-9BJB-6S(73)	Zinc Alloy	Silver	Bayonet Lock	Communication Systems Instrumentation	Keyed	Free Hanging (In-Line)	Nickel	2 A	Backshell Strain Relief	9	Female Sockets Jack	100 VAC 140 VDC	-10 °C	60 °C	Silver		6			Unshielded	Metal	5.5 mm	0.217 in	0.177 in	4.5 mm	Phosphor Bronze	Nylon Polyamide (PA)
Hirose Electric USA, Inc. HR11-9BPB-4S(73)	Zinc Alloy	Silver	Bayonet Lock	Communication Systems Instrumentation	Keyed	Free Hanging (In-Line)	Nickel	2 A	Backshell Clamp Coupling Nut Strain Relief	9	Female Sockets Plug	100 VAC 140 VDC	-10 °C	60 °C	Silver	UL94 V-0	4	118.1 µin	3 µm	Unshielded	Metal	5.5 mm	0.217 in	0.177 in	4.5 mm	Phosphor Bronze	Nylon Polyamide (PA)	Brass Nickel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.17
		20	$ 7.39
		40	$ 6.81
		100	$ 6.47

Description

General part information

HR11 Series

6 Position Circular Connector Receptacle, Female Sockets Solder Cup
