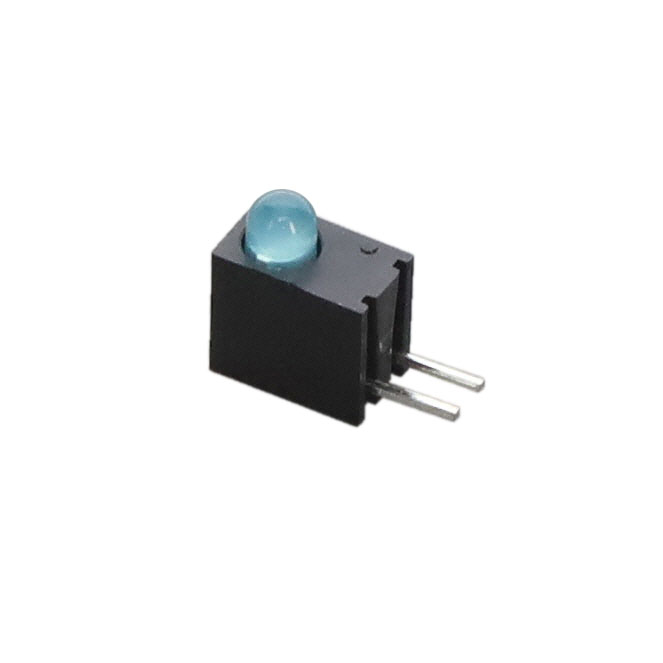

H101CBWD

Active

Bivar Inc.

PC-TYPE/STACKABLE LED LAMP,BLUE,DIFFUSED,LMP-5

Search across all available documentation for this part.

Active

Bivar Inc.

PC-TYPE/STACKABLE LED LAMP,BLUE,DIFFUSED,LMP-5

Technical Specifications

Parameters and characteristics for this part

Part	Lens Size	Lens Size	Millicandela Rating	Viewing Angle [custom]	Voltage Rating	Lens Type	Mounting Type	Wavelength - Peak	Lens Style	Color	Configuration	Viewing Angle	Current	Current [custom]	Current [custom]
Bivar Inc. H101CYDL	3 mm	T-1	2 mcd	40 °	2 V	Diffused	Through Hole Right Angle	590 nm	Round with Domed Top	Yellow	Single
Bivar Inc. H101CBWD	3 mm	T-1	10 mcd	40 °	4 V	Diffused	Through Hole Right Angle	430 nm	Round with Domed Top	Blue	Single
Bivar Inc. H101CHDL	3 mm	T-1	3 mcd	40 °	2 V	Diffused	Through Hole Right Angle		Round with Domed Top	Red	Single
Bivar Inc. H101CSGC	3 mm	T-1	50 mcd		2.1 V	Clear	Through Hole Right Angle	568 nm	Round with Domed Top	Green	Single	30 °	30 mA
Bivar Inc. H101CSUGC	3 mm	T-1	300 mcd		2.1 V	Clear		570 nm	Round with Domed Top	Green	Single	30 °
Bivar Inc. H101CBC-Y/G	3 mm	T-1							Round with Domed Top		Single
Bivar Inc. H101CBC-RP	3 mm	T-1	30 mcd		2 V 2.1 V	Diffused White		568 nm 625 nm	Round with Domed Top	Green Red	Single	45 °		30 mA	30 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Circuit Board Indicator LED Circuit Board Indicator Single Blue Diffused 4V Round with Domed Top 3mm, T-1 Through Hole, Right Angle
