Q-0802Y0008108i

Active

Amphenol Custom Cable

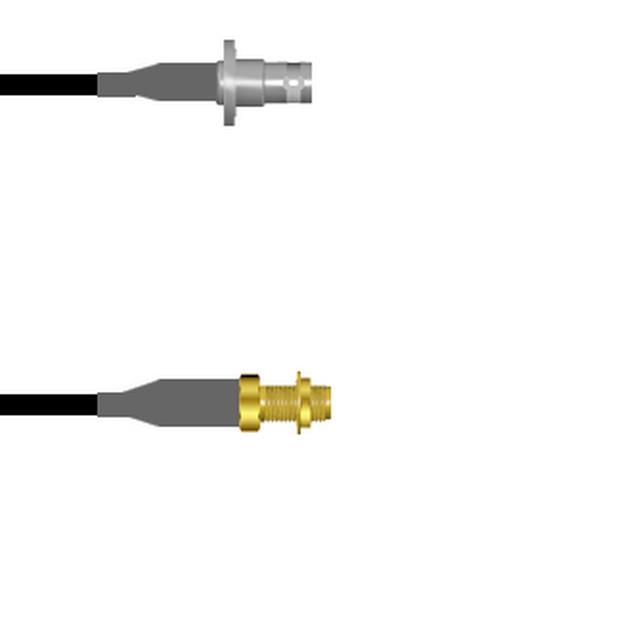

CBL ASSY BNC-SMA JACK-JACK 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0802Y0008108i

Active

Amphenol Custom Cable

CBL ASSY BNC-SMA JACK-JACK 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0802Y0008108i

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	SMA Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	BNC to SMA

Q-0802Y0 Series

Part	1st Contact Gender	Length	Length	Overall Impedance	1st Connector	2nd Contact Gender	Frequency - Max [Max]	Features	1st Connector Mounting Feature	2nd Connector Mounting Feature	Cable Type	Style	Color	1st Connector Mounting Type	2nd Connector	2nd Connector Mounting Type	Length
Amphenol Custom Cable Q-0802Y0008012i	Female	12 "	304.8 mm	50 Ohms	BNC Jack	Female	4 GHz	Shielded	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	RG-58	BNC to SMA	Black	Panel Mount	SMA Jack	Panel Mount
Amphenol Custom Cable Q-0802Y0008.75M	Female	29.53 "	750 mm	50 Ohms	BNC Jack	Female	4 GHz	Shielded	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	RG-58	BNC to SMA	Black	Panel Mount	SMA Jack	Panel Mount
Amphenol Custom Cable Q-0802Y00081.5M	Female	59.1 in	1.5 m	50 Ohms	BNC Jack	Female	4 GHz	Shielded	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	RG-58	BNC to SMA	Black	Panel Mount	SMA Jack	Panel Mount	4.9 ft
Amphenol Custom Cable Q-0802Y0008001M	Female	39.4 in	1 m	50 Ohms	BNC Jack	Female	4 GHz	Shielded	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	RG-58	BNC to SMA	Black	Panel Mount	SMA Jack	Panel Mount	3.3 ft
Amphenol Custom Cable Q-0802Y0008009i	Female	9 "	228.6 mm	50 Ohms	BNC Jack	Female	4 GHz	Shielded	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	RG-58	BNC to SMA	Black	Panel Mount	SMA Jack	Panel Mount
Amphenol Custom Cable Q-0802Y0008060i	Female	5 '	1.5 m	50 Ohms	BNC Jack	Female	4 GHz	Shielded	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	RG-58	BNC to SMA	Black	Panel Mount	SMA Jack	Panel Mount	5 ft
Amphenol Custom Cable Q-0802Y0008108i	Female	108 in	2.7 m	50 Ohms	BNC Jack	Female	4 GHz	Shielded	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	RG-58	BNC to SMA	Black	Panel Mount	SMA Jack	Panel Mount	9 ft
Amphenol Custom Cable Q-0802Y0008048i	Female	48 in	1200 mm	50 Ohms	BNC Jack	Female	4 GHz	Shielded	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	RG-58	BNC to SMA	Black	Panel Mount	SMA Jack	Panel Mount	4 ft
Amphenol Custom Cable Q-0802Y0008072i	Female	72 in	1.8 m	50 Ohms	BNC Jack	Female	4 GHz	Shielded	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	RG-58	BNC to SMA	Black	Panel Mount	SMA Jack	Panel Mount	6 ft
Amphenol Custom Cable Q-0802Y00082.5M	Female	98.4 in	2.5 m	50 Ohms	BNC Jack	Female	4 GHz	Shielded	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	RG-58	BNC to SMA	Black	Panel Mount	SMA Jack	Panel Mount	8.2 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 106.67
		25	$ 104.58
		50	$ 102.48
		100	$ 100.38
		250	$ 98.29

Description

General part information

Q-0802Y0 Series

Cable Assembly Coaxial BNC to SMA RG-58 108.0" (2.7m) 9.0'

Documents

Technical documentation and resources

No documents available
