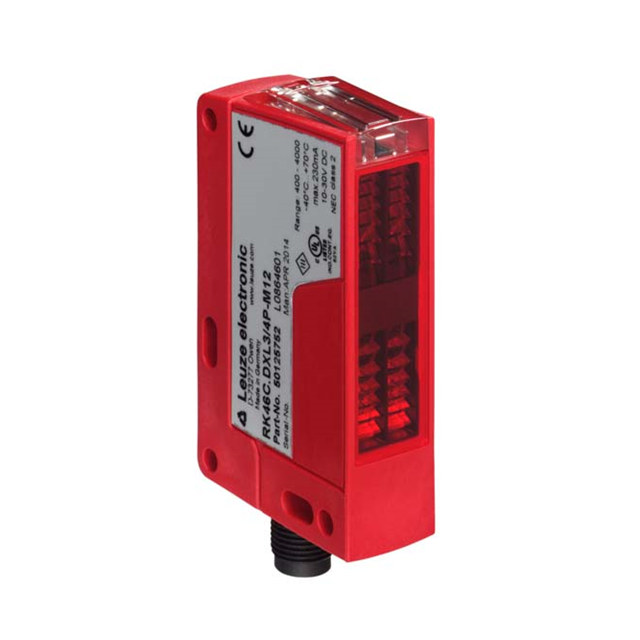

RK46C.DXL3/4P-M12
ActiveLeuze
UNPOLARIZED RETRO SENSOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RK46C.DXL3/4P-M12
ActiveLeuze
UNPOLARIZED RETRO SENSOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RK46C.DXL3/4P-M12 |
|---|---|
| Adjustment Type | Teaching Method |
| Connection Method | Connector, M12 |
| Ingress Protection | IEC 60947-5-2 IP67, IEC 60947-5-2 IP69K |
| Light Source | Red LED |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | PNP - Dark-ON/Light-ON |
| Response Time | 2 ms |
| Sensing Distance [Max] | 15.748 in |
| Sensing Distance [Max] | 400 mm |
| Sensing Distance [Min] | 5.2 mm |
| Sensing Distance [Min] | 0.205 " |
| Sensing Method | Retroreflective |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 211.20 | |
Description
General part information
RK46C.DXL3 Series
Retroreflective Optical Sensor 15.748" ~ 0.205" (400mm ~ 5.2mm) PNP - Dark-ON/Light-ON
