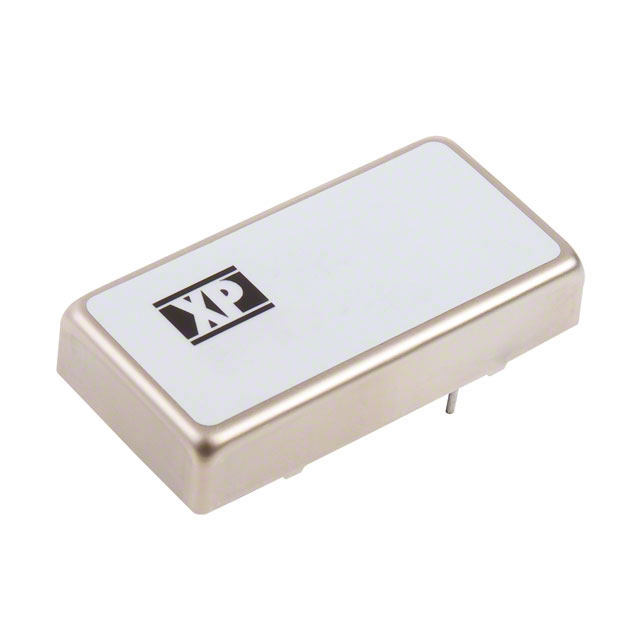

JTH1524S12
ActiveXP POWER
DC DC CONVERTER 12V 15W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
JTH1524S12
ActiveXP POWER
DC DC CONVERTER 12V 15W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JTH1524S12 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 1.25 A |
| Efficiency | 85 % |
| Features | SCP, UVLO, OVP, OCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 15 W |
| Size / Dimension [x] | 2 in |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Standard Number | 62368-1 |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 44.00 | |
| 5 | $ 42.68 | |||
| 10 | $ 41.36 | |||
| 25 | $ 39.60 | |||
| 100 | $ 36.96 | |||
Description
General part information
JTH1524 Series
Isolated Module DC DC Converter 1 Output 12V 1.25A 9V - 36V Input
