ED1550/10

Active

On Shore Technology Inc.

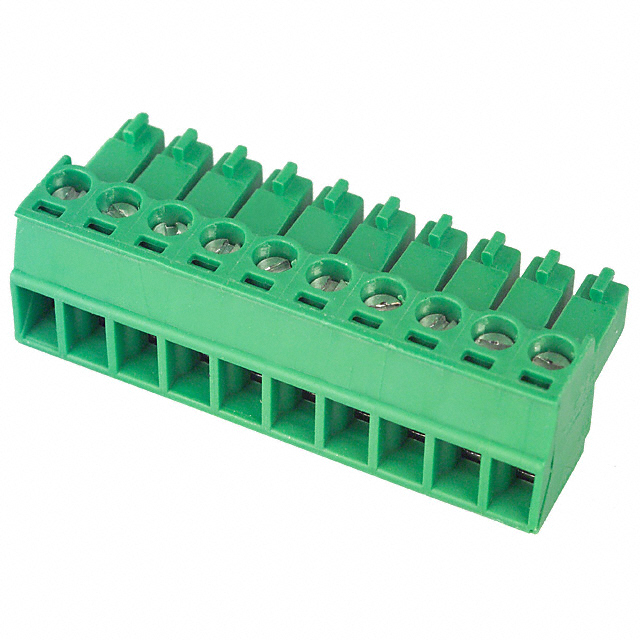

TERM BLOCK PLUG 10POS STR 3.5MM

Search across all available documentation for this part.

Active

On Shore Technology Inc.

TERM BLOCK PLUG 10POS STR 3.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	ED1550/10

Color	Green
Contact Material	Copper Tin Alloy
Current - UL	8 A
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.437 in
Insulation Height	11.1 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	10
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	10
Screw Size	M2
Termination Style	Screw
Torque - Screw	0.4 Nm
Torque - Screw	3.5 Lb-In
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	28 AWG
Wire Gauge or Range - AWG [Min]	16 AWG
Wire Gauge or Range - mm˛	1.5 mm˛
Wire Strip Length	7 mm

Part	Contact Material	Number of Positions	Wire Strip Length	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Mounting Type	Termination Style	Voltage - UL	Pitch [x]	Pitch [x]	Positions Per Level	Wire Gauge or Range - mm˛	Current - UL	Type	Screw Size	Insulation Height	Insulation Height	Material Flammability Rating	Torque - Screw	Torque - Screw	Number of Levels	Housing Material	Color	Operating Temperature [Min]	Operating Temperature [Max]
On Shore Technology Inc. ED1550/10	Copper Tin Alloy	10	7 mm	28 AWG	16 AWG	Free Hanging (In-Line)	Screw	300 V	3.5 mm	0.138 in	10	1.5 mm˛	8 A	Plug Female Sockets	M2	0.437 in	11.1 mm	UL94 V-0	0.4 Nm	3.5 Lb-In	1	Polyamide (PA) Nylon	Green	-30 ░C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 5.78

General part information

10 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line)
