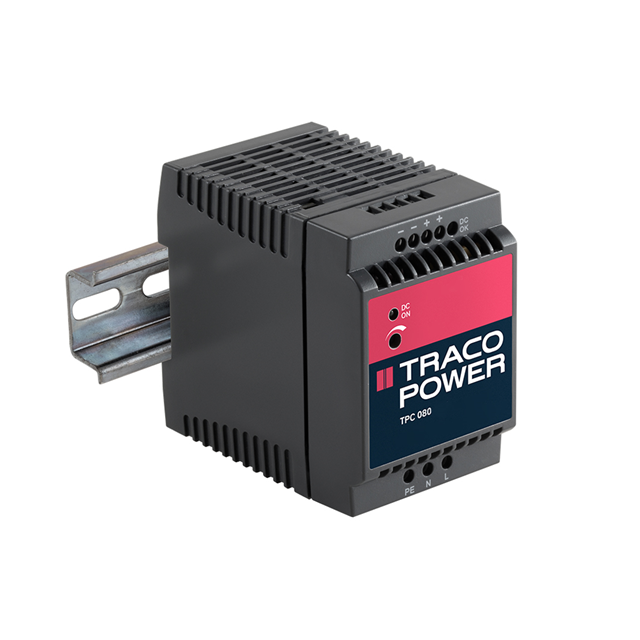

TPC 080-112

Active

Traco Power

AC/DC DIN RAIL SUPPLY 12V 72W

Search across all available documentation for this part.

Active

Traco Power

AC/DC DIN RAIL SUPPLY 12V 72W

Technical Specifications

Parameters and characteristics for this part

Specification	TPC 080-112

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	Industrial, ITE (Commercial)
Approval Agency	cCSAus, CB, CE, SIQ
Current - Output (Max) [Max]	6 A
DC Voltage - Input (Max) [Max]	375 V
DC Voltage - Input (Min) [Min]	90 V
Efficiency	87 %
Features	Adjustable Output, Universal Input, IP20
Input Type	AC or DC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	72 W
Size / Dimension [x]	96.5 mm
Size / Dimension [x]	3.8 "
Size / Dimension [y]	63 mm
Size / Dimension [y]	2.48 in
Size / Dimension [z]	89.9 mm
Size / Dimension [z]	3.54 "
Voltage - Output 1	12 V

Part	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Min]	Operating Temperature [Max]	Input Type	Power (Watts)	Efficiency	Applications	DC Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Approval Agency	AC Voltage - Input [Min]	AC Voltage - Input [Max]	DC Voltage - Input (Max) [Max]	Voltage - Output 1	Features
Traco Power TPC 080-112	1	63 mm	89.9 mm	96.5 mm	3.8 "	2.48 in	3.54 "	-25 °C	70 °C	AC or DC	72 W	87 %	Industrial ITE (Commercial)	90 V	6 A	CB cCSAus CE SIQ	85 VAC	264 VAC	375 V	12 V	Adjustable Output IP20 Universal Input
