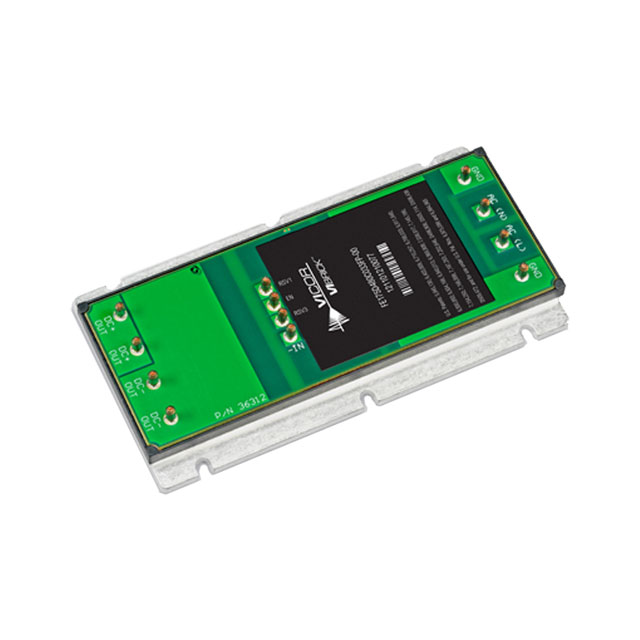

FE175D480C033FP-00
ObsoleteVicor Corporation
AC/DC CONVERTER 48V 330W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FE175D480C033FP-00
ObsoleteVicor Corporation
AC/DC CONVERTER 48V 330W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FE175D480C033FP-00 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | IEC, cULus, EN, CE, TUV |
| Current - Output (Max) [Max] | 6.9 A |
| Efficiency | 94 % |
| Features | PFC |
| Line Regulation | 1 % |
| Load Regulation | 1 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | 12-DIP Module |
| Power (Watts) | 330 W |
| Size / Dimension [x] | 95.3 mm |
| Size / Dimension [x] | 3.75 in |
| Size / Dimension [y] | 1.5 in |
| Size / Dimension [y] | 38.2 mm |
| Size / Dimension [z] | 0.38 in |
| Size / Dimension [z] | 9.6 mm |
| Type | Enclosed |
| Voltage - Output 1 | 48 V |
| Weight | 0.245 lb |
| Weight | 111.13 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
FE175 Series
Enclosed AC DC Converters 1 Output 48V 6.9A 85 ~ 264 VAC Input
