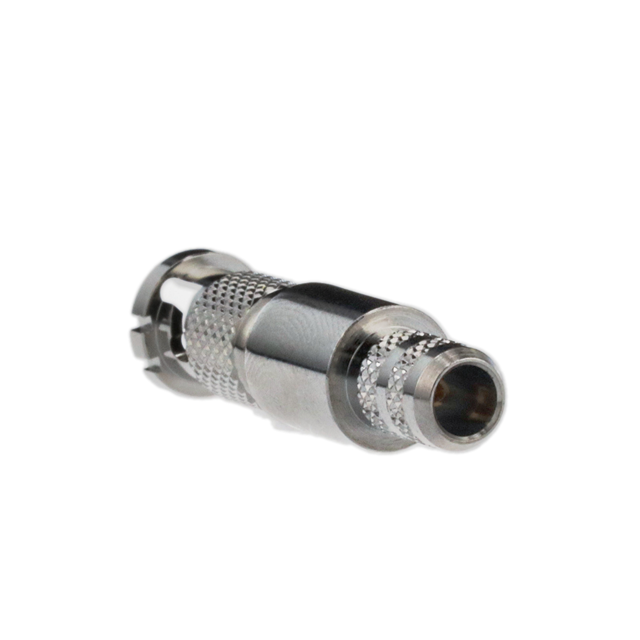

UHDMB05

Active

Switchcraft Inc.

RF CONNECTORS / COAXIAL CONNECTORS MICRO BNC PLUG UHD 12GHZ 4505R CABLE

Search across all available documentation for this part.

Active

Switchcraft Inc.

RF CONNECTORS / COAXIAL CONNECTORS MICRO BNC PLUG UHD 12GHZ 4505R CABLE

Technical Specifications

Parameters and characteristics for this part

RF Connectors / Coaxial Connectors BNC R/A PLUG RG58C/URG141A/URG303/U

Part	Fastening Type	Housing Color	Connector Type	Cable Group	Contact Termination	Impedance	Shield Termination	Mounting Type	Connector Style	Frequency - Max [Max]	Mating Cycles	Number of Ports
Switchcraft Inc. UHDMB05	Bayonet Lock	Silver	Male Pin Plug	Belden 1505A Belden 4505R	Crimp	75 Ohms	Crimp	Free Hanging (In-Line)	BNC Micro	12 GHz	20000	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Connectors / Coaxial Connectors BNC R/A PLUG RG58C/URG141A/URG303/U
