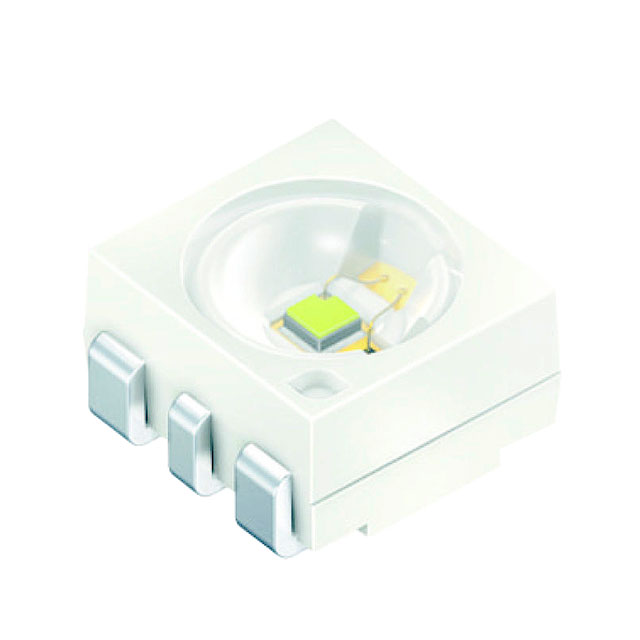

LW G6CP-EAFA-JKQL-1-140-R18-Z
Activeams-OSRAM USA INC.
LED TOPLED COOL WHT 5600K 6SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LW G6CP-EAFA-JKQL-1-140-R18-Z
Activeams-OSRAM USA INC.
LED TOPLED COOL WHT 5600K 6SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LW G6CP-EAFA-JKQL-1-140-R18-Z |
|---|---|
| CCT (K) | 5600 K |
| Color | Cool, White |
| CRI (Color Rendering Index) | 80 |
| Current - Max [Max] | 250 mA |
| Current - Test | 140 mA |
| Flux @ 25°C, Current - Test | 11 lm |
| Height - Seated (Max) [Max] [z] | 2.1 mm |
| Height - Seated (Max) [Max] [z] | 0.083 " |
| Lumens/Watt @ Current - Test | 24 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, J-Lead |
| Size / Dimension [x] | 3.3 mm |
| Size / Dimension [x] | 0.13 in |
| Size / Dimension [y] | 3 mm |
| Size / Dimension [y] | 0.118 in |
| Supplier Device Package | 6-SMD |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.90 | |
| 10 | $ 0.56 | |||
| 100 | $ 0.39 | |||
| 500 | $ 0.33 | |||
| Digi-Reel® | 1 | $ 0.90 | ||
| 10 | $ 0.56 | |||
| 100 | $ 0.39 | |||
| 500 | $ 0.33 | |||
| Tape & Reel (TR) | 1000 | $ 0.33 | ||
Description
General part information
LWG6 Series
LED Lighting Advanced Power TOPLED® White, Cool 5600K 3.3V 140mA 120° 6-SMD, J-Lead
