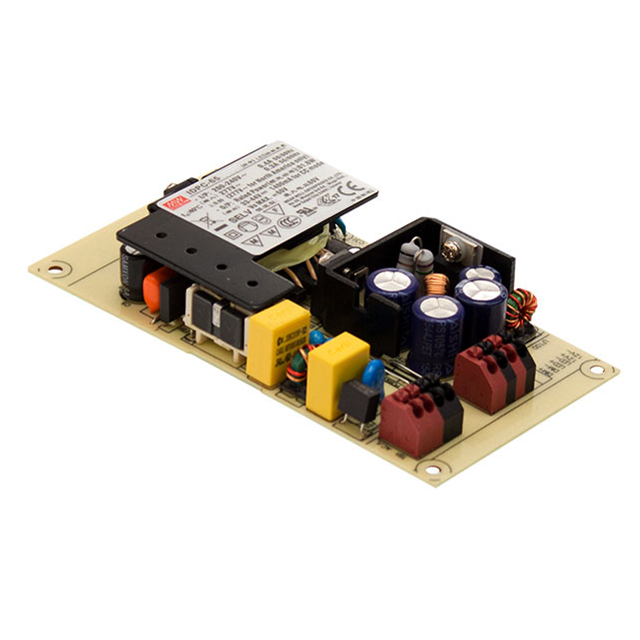

IDPC-65-1050
ObsoleteMEAN WELL USA Inc.
LED DRVR CC AC/DC 46-62V 1.05A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IDPC-65-1050
ObsoleteMEAN WELL USA Inc.
LED DRVR CC AC/DC 46-62V 1.05A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IDPC-65-1050 |
|---|---|
| Approval Agency | ENEC, CCC, cURus, CE, CB |
| Current - Output (Max) [Max] | 1.05 A |
| Dimming | Analog, PWM |
| Efficiency | 87 % |
| Features | SCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 65 W |
| Size / Dimension [x] | 5.12 " |
| Size / Dimension [x] | 130 mm |
| Size / Dimension [y] | 67.5 mm |
| Size / Dimension [y] | 2.66 " |
| Size / Dimension [z] | 20.5 mm |
| Size / Dimension [z] | 0.81 in |
| Termination Style | Terminal Block |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 295 VAC |
| Voltage - Input (Min) [Min] | 180 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output [Max] | 62 V |
| Voltage - Output [Min] | 46 V |
IDPC-65 Series
| Part | Topology | Approval Agency | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Power (Watts) | Voltage - Input (Min) [Min] | Voltage - Isolation | Type | Mounting Type | Features | Voltage - Output [Min] | Voltage - Output [Max] | Dimming | Termination Style | Number of Outputs | Voltage - Input (Max) [Max] | Efficiency | Current - Output (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MEAN WELL USA Inc. | AC DC Converter | CB CCC CE cURus ENEC | 5.12 " | 20.5 mm | 0.81 in | 67.5 mm | 2.66 " | 130 mm | 65 W | 180 VAC | 3750 V | Constant Current | Chassis Mount | SCP | 46 V | 62 V | Analog PWM | Terminal Block | 1 | 295 VAC | 87 % | 1.05 A | -20 C | 40 °C |
MEAN WELL USA Inc. | AC DC Converter | CB CCC CE cURus ENEC | 5.12 " | 20.5 mm | 0.81 in | 67.5 mm | 2.66 " | 130 mm | 65 W | 180 VAC | 3750 V | Constant Current | Chassis Mount | SCP | 46 V | 62 V | Analog PWM | Terminal Block | 1 | 295 VAC | 87 % | 1.05 A | -20 C | 40 °C |
MEAN WELL USA Inc. | AC DC Converter | CB CCC CE cURus ENEC | 5.12 " | 20.5 mm | 0.81 in | 67.5 mm | 2.66 " | 130 mm | 64 W | 180 VAC | 3750 V | Constant Current | Chassis Mount | SCP | Analog PWM | Terminal Block | 1 | 295 VAC | 86 % | 1.4 A | -20 C | 40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
IDPC-65 Series
1.05A 46 ~ 62V Constant Current LED Driver AC DC Converter Topology 1 Output
