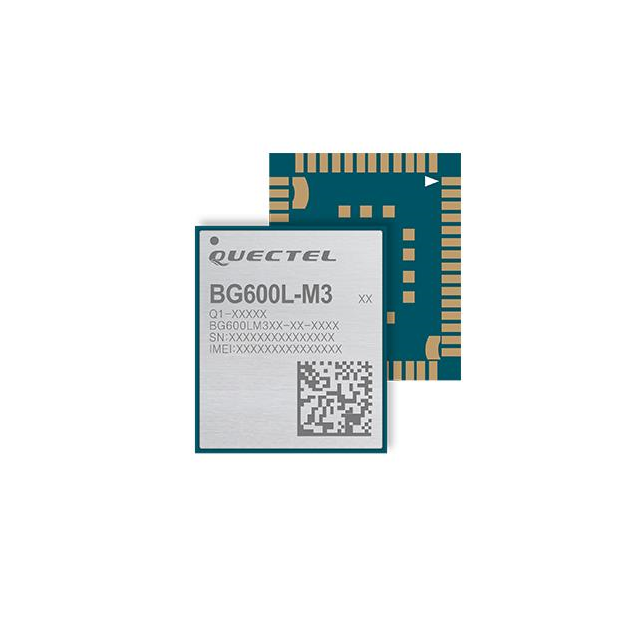

BG600LM3AA-D08-SGNSA

Active

Quectel

RF TXRX MOD CELL NAV SMD

Deep-Dive with AI

Search across all available documentation for this part.

BG600LM3AA-D08-SGNSA

Active

Quectel

RF TXRX MOD CELL NAV SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BG600LM3AA-D08-SGNSA

Antenna Type	Antenna Not Included
Current - Receiving	17.9 mA
Data Rate	1.119 Mbps
Frequency	1900 MHz, 1800 MHz, 900 MHz, 850 MHz
Mounting Type	Surface Mount
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-35 °C
Package / Case	Module
Power - Output	21 dBm
Protocol	GSM, Beidou, GNSS, GPS, Galileo, GPRS, GLONASS, LTE
RF Family/Standard	Cellular, Navigation
Serial Interfaces	PCM, USB, ADC, I2C, GPIO, UART
Voltage - Supply [Max]	4.3 V
Voltage - Supply [Min]	3.3 V

BG600 Series

Part	Protocol	Mounting Type	Serial Interfaces	Operating Temperature [Min]	Operating Temperature [Max]	Frequency	RF Family/Standard	Package / Case	Antenna Type	Power - Output	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Receiving	Data Rate
Quectel BG600LM3AA-D08-SGNSA	Beidou Galileo GLONASS GNSS GPRS GPS GSM LTE	Surface Mount	ADC GPIO I2C PCM UART USB	-35 °C	75 ░C	850 MHz 900 MHz 1800 MHz 1900 MHz	Cellular Navigation	Module	Antenna Not Included	21 dBm	4.3 V	3.3 V	17.9 mA	1.119 Mbps

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 28.28
		10	$ 26.10
		25	$ 23.92
		100	$ 22.11
	Digi-Reel®	1	$ 28.28
		10	$ 26.10
		25	$ 23.92
		100	$ 22.11
	Tape & Reel (TR)	250	$ 21.02
		500	$ 19.57

Description

General part information

BG600 Series

Cellular, Navigation BeiDou, Galileo, GLONASS, GPS, GNSS, GSM, GPRS, LTE Transceiver Module 850MHz, 900MHz, 1.8GHz, 1.9GHz Antenna Not Included Surface Mount

Documents

Technical documentation and resources

No documents available
