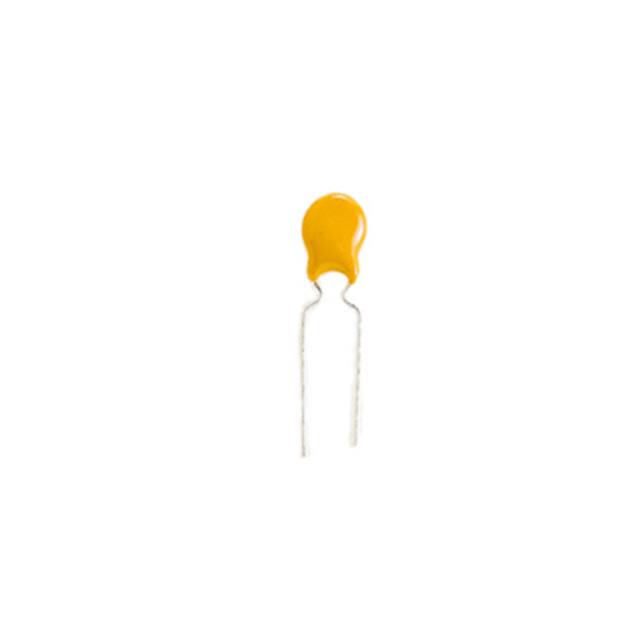

RS60RB-050

Active

OptiFuse

60V 500MA 40A 1A PLUGIN RESETTABLE FUSES ROHS

Search across all available documentation for this part.

Active

OptiFuse

60V 500MA 40A 1A PLUGIN RESETTABLE FUSES ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	RS60RB-050

Approval Agency	cUL, TUV, UL
Current - Hold (Ih) (Max) [Max]	500 mA
Current - Max [Max]	40 A
Current - Trip (It)	1 A
Height - Seated (Max) [Max]	13.7 mm
Height - Seated (Max) [Max] [z]	0.539 "
Lead Spacing	5.1 mm
Lead Spacing	0.201 in
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Disc, Radial
Resistance - Post Trip (R1) (Max) [Max]	1.17 Ohms
Size / Dimension [diameter]	0.311 in
Size / Dimension [diameter]	7.9 mm
Size / Dimension [z]	0.122 in
Size / Dimension [z]	3.1 mm
Time to Trip	4 s
Type	Polymeric
Voltage - Max [Max]	60 V

Part	Time to Trip	Voltage - Max [Max]	Resistance - Initial (Ri) (Min) [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Max [Max]	Current - Hold (Ih) (Max) [Max]	Resistance - Post Trip (R1) (Max) [Max]	Mounting Type	Lead Spacing	Lead Spacing	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [z]	Approval Agency	Type	Current - Trip (It)	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Height - Seated (Max) [Max]
OptiFuse RS60RB-075	6.3 s	60 V	250 mOhms	15.2 mm	0.598 in	40 A	750 mA	600 mOhms	Through Hole	5.1 mm	0.201 in	10.4 mm	0.409 in	3.1 mm	0.122 in	cUL TUV UL	Polymeric	1.5 A	85 °C	-40 °C	Disc Radial
OptiFuse RS60RB-050	4 s	60 V			0.539 "	40 A	500 mA	1.17 Ohms	Through Hole	5.1 mm	0.201 in	7.9 mm	0.311 in	3.1 mm	0.122 in	cUL TUV UL	Polymeric	1 A	85 °C	-40 °C	Disc Radial	13.7 mm
OptiFuse RS60RB-025	2.5 s	60 V	1.25 Ohms	12.7 mm	0.5 in	40 A	250 mA	3 Ohms	Through Hole	5.1 mm	0.201 in					cUL TUV UL	Polymeric	500 mA	85 °C	-40 °C	Disc Radial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Polymeric PTC Resettable Fuse 60V 500 mA Ih Through Hole Radial, Disc
