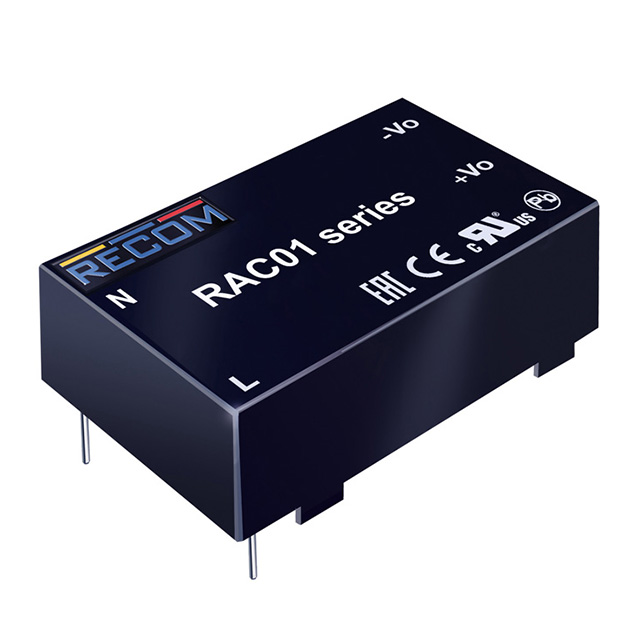

RAC01-12SC

Obsolete

RECOM Power

AC/DC POWER SUPPLY SINGLE-OUT 12V 0.083A 1W 4-PIN PDIP TUBE

Search across all available documentation for this part.

Obsolete

RECOM Power

AC/DC POWER SUPPLY SINGLE-OUT 12V 0.083A 1W 4-PIN PDIP TUBE

Technical Specifications

Parameters and characteristics for this part

AC/DC Power Modules 1W 85-264Vin 5Vout 200mA

Part	Load Regulation	Voltage - Output 1	Mounting Type	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Features	Number of Outputs	Approval Agency	Applications	Type	Operating Temperature [Min]	Operating Temperature [Max]	Line Regulation	Efficiency	Current - Output (Max) [Max]	Weight	Weight	Voltage - Input [Max]	Voltage - Input [Min]
RECOM Power RAC01-3.3SGB	6 %	3.3 V	Through Hole	4-DIP Module	33.7 mm	0.87 in	1.33 "	22.2 mm	0.75 in	19 mm	Universal Input	1	CE cURus FCC	ITE (Commercial)	Enclosed	-25 °C	70 °C	2 %
RECOM Power RAC01-12SC	6 %	12 V	Through Hole	4-DIP Module	33.7 mm	0.87 in	1.33 "	22.2 mm	0.71 in	18 mm	SCP	1	CE EN UL	ITE (Commercial)	Enclosed	-25 °C	85 °C	2 %	72 %	83 mA	0.055 lb	24.95 g	264 VAC	80 VAC
RECOM Power RAC01-12SGB	6 %	12 V	Through Hole	4-DIP Module	33.7 mm	0.87 in	1.33 "	22.2 mm	0.75 in	19 mm	Universal Input	1	CE cURus FCC	ITE (Commercial)	Enclosed	-25 °C	70 °C	2 %	68 %	83 mA			240 VAC	100 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	4	$ 19.21
Digikey	Tube	1	$ 15.11

General part information

AC/DC Power Modules 1W 85-264Vin 5Vout 200mA
