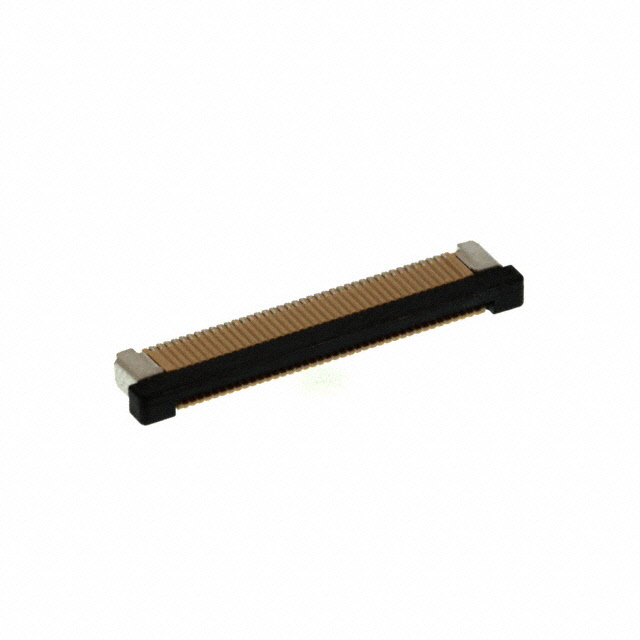

ZF5S-40-01-T-WT-TR

Active

Samtec Inc.

CONN FFC BOTTOM 40POS 0.5MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ZF5S Datasheet +1

ZF5S-40-01-T-WT-TR

Active

Samtec Inc.

CONN FFC BOTTOM 40POS 0.5MM R/A

Deep-Dive with AI

DocumentsDatasheet ZF5S Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZF5S-40-01-T-WT-TR

Actuator Color	Black
Actuator Material	Liquid Crystal Polymer (LCP)
Cable End Type	Straight
Connector/Contact Type	Contacts, Bottom
Contact Finish	Tin
Contact Material	Phosphor Bronze
Current Rating (Amps)	1.8 A
Features	Zero Insertion Force (ZIF), Solder Retention
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FFC
Height Above Board	2.1 mm
Height Above Board	0.083 "
Housing Color	Natural
Housing Material	Liquid Crystal Polymer (LCP)
Locking Feature	Slide Lock
Mounting Type	Surface Mount, Right Angle
Number of Positions	40
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder

ZF5S-40 Series

Part	FFC, FCB Thickness	Housing Color	Flat Flex Type	Connector/Contact Type	Actuator Material	Pitch [x]	Pitch [x]	Actuator Color	Features	Cable End Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Finish	Height Above Board	Height Above Board	Termination	Number of Positions	Housing Material	Locking Feature	Contact Material
Samtec Inc. ZF5S-40-01-T-WT-K	0.3 mm	Natural	FFC	Contacts Bottom	Liquid Crystal Polymer (LCP)	0.5 mm	0.02 in	Black	Pick and Place Cap Solder Retention Zero Insertion Force (ZIF)	Straight	1.8 A	105 ░C	-55 °C	Surface Mount Right Angle	Tin	2.1 mm	0.083 "	Solder	40	Liquid Crystal Polymer (LCP)	Slide Lock	Phosphor Bronze
Samtec Inc. ZF5S-40-02-T-WT-K-TR	0.3 mm	Natural	FFC	Contacts Top	Liquid Crystal Polymer (LCP)	0.5 mm	0.02 in	Black	Pick and Place Cap Solder Retention Zero Insertion Force (ZIF)	Straight	1.8 A	105 ░C	-55 °C	Surface Mount Right Angle	Tin	2.1 mm	0.083 "	Solder	40	Liquid Crystal Polymer (LCP)	Slide Lock	Phosphor Bronze
Samtec Inc. ZF5S-40-01-T-WT-TR	0.3 mm	Natural	FFC	Contacts Bottom	Liquid Crystal Polymer (LCP)	0.5 mm	0.02 in	Black	Solder Retention Zero Insertion Force (ZIF)	Straight	1.8 A	105 ░C	-55 °C	Surface Mount Right Angle	Tin	2.1 mm	0.083 "	Solder	40	Liquid Crystal Polymer (LCP)	Slide Lock	Phosphor Bronze
Samtec Inc. ZF5S-40-03-T-WT	0.3 mm	Natural	FFC	Contacts Vertical - 1 Sided	Liquid Crystal Polymer (LCP)	0.5 mm	0.02 in	Black	Solder Retention Zero Insertion Force (ZIF)	Straight	1.8 A	105 ░C	-55 °C	Surface Mount	Tin	4.87 mm	0.192 in	Solder	40	Liquid Crystal Polymer (LCP)	Slide Lock	Phosphor Bronze
Samtec Inc. ZF5S-40-03-T-WT-TR	0.3 mm	Natural	FFC	Contacts Vertical - 1 Sided	Liquid Crystal Polymer (LCP)	0.5 mm	0.02 in	Black	Solder Retention Zero Insertion Force (ZIF)	Straight	1.8 A	105 ░C	-55 °C	Surface Mount	Tin	4.87 mm	0.192 in	Solder	40	Liquid Crystal Polymer (LCP)	Slide Lock	Phosphor Bronze

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.42
		50	$ 2.79
		100	$ 2.37
		500	$ 2.10
	Digi-Reel®	1	$ 3.42
		50	$ 2.79
		100	$ 2.37
		500	$ 2.10
	Tape & Reel (TR)	1350	$ 1.61
		2700	$ 1.45

Description

General part information

ZF5S-40 Series

40 Position FFC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
