AA3021LVBS/D

Active

Kingbright

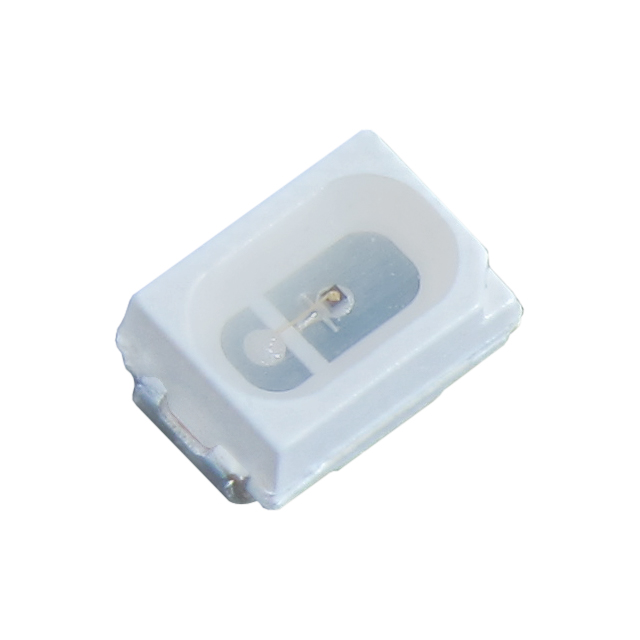

LED BLUE CLEAR 2SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AA3021LVBS/D

Active

Kingbright

LED BLUE CLEAR 2SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AA3021LVBS/D

Color	Blue
Configuration	Independent
Current - Test	2 mA
Height (Max) [Max]	1.5 mm
Lens Color	Colorless
Lens Size [x]	2.5 mm
Lens Size [y]	1.5 mm
Lens Style	Oval with Flat Top
Lens Transparency	Clear
Millicandela Rating	50 mcd
Mounting Type	Surface Mount
Package / Case	2-SMD, J-Lead
Size / Dimension [x]	2.7 mm
Size / Dimension [y]	2 mm
Supplier Device Package	2-SMD
Viewing Angle	125 °
Voltage - Forward (Vf) (Typ)	2.65 V
Wavelength - Dominant	470 nm
Wavelength - Peak	465 nm

AA3021 Series

Part	Package / Case	Wavelength - Dominant	Configuration	Current - Test	Lens Size [x]	Lens Size [y]	Wavelength - Peak	Lens Color	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Supplier Device Package	Lens Transparency	Lens Style	Size / Dimension [y]	Size / Dimension [x]	Color	Height (Max) [Max]	Viewing Angle	Mounting Type	Wavelength - Peak [custom]
Kingbright AA3021ES	2-SMD J-Lead	617 nm	Standard	20 mA	2.5 mm	1.5 mm	627 nm	Colorless	2 V	18 mcd	SMD	Clear	Oval with Flat Top	2 mm	2.7 mm	Red	1.5 mm	125 °	Surface Mount
Kingbright AA3021LSYSK/J3-TR	2-SMD J-Lead	590 nm	Independent	2 mA	2.5 mm	1.5 mm	590 nm	Colorless	1.85 V	45 mcd	2-SMD	Clear	Oval with Flat Top	2 mm	2.7 mm	Yellow	1.5 mm	125 °	Surface Mount
Kingbright AA3021ZGSK	2-SMD J-Lead	525 nm	Standard	20 mA	2.5 mm	1.5 mm	515 nm	Colorless	3.3 V	700 mcd	SMD	Clear	Oval with Flat Top	2 mm	2.7 mm	Green	1.5 mm	125 °	Surface Mount
Kingbright AA3021SESK/J3-TR	2-SMD J-Lead	625 nm	Standard	20 mA	2.5 mm	1.5 mm		Colorless	2.2 V	450 mcd	SMD	Clear	Oval with Flat Top	2 mm	2.7 mm	Red	1.5 mm	125 °	Surface Mount	640 nm
Kingbright AA3021VRCBS/A	2-SMD J-Lead		Standard	20 mA	2.5 mm	1.5 mm		Colorless	3.3 V	1600 mcd	SMD	Clear	Oval with Flat Top	2 mm	2.7 mm	Cyan	1.5 mm	120 °	Surface Mount
Kingbright AA3021YS	2-SMD J-Lead	588 nm	Standard	20 mA	2.5 mm	1.5 mm	590 nm	Colorless	2.1 V	15 mcd	SMD	Clear	Oval with Flat Top	2 mm	2.7 mm	Yellow	1.5 mm	125 °	Surface Mount
Kingbright AA3021SGS	2-SMD J-Lead	568 nm	Standard	20 mA	2.5 mm	1.5 mm	565 nm	Colorless	2.2 V	20 mcd	SMD	Clear	Oval with Flat Top	2 mm	2.7 mm	Green	1.5 mm	125 °	Surface Mount
Kingbright AA3021LVBS/D	2-SMD J-Lead	470 nm	Independent	2 mA	2.5 mm	1.5 mm	465 nm	Colorless	2.65 V	50 mcd	2-SMD	Clear	Oval with Flat Top	2 mm	2.7 mm	Blue	1.5 mm	125 °	Surface Mount
Kingbright AA3021VBS/D	2-SMD J-Lead	470 nm	Standard	20 mA	2.5 mm	1.5 mm	465 nm	Colorless	3.3 V	450 mcd	SMD	Clear	Oval with Flat Top	2 mm	2.7 mm	Blue	1.5 mm	125 °	Surface Mount
Kingbright AA3021SESK	2-SMD J-Lead	601 nm	Standard	20 mA	2.5 mm	1.5 mm	610 nm	Colorless	2.1 V	300 mcd	SMD	Clear	Oval with Flat Top	2 mm	2.7 mm		1.5 mm	125 °	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.71
		10	$ 0.47
		100	$ 0.31
		1000	$ 0.24
	Digi-Reel®	1	$ 0.71
		10	$ 0.47
		100	$ 0.31
		1000	$ 0.24
	Tape & Reel (TR)	2000	$ 0.15

Description

General part information

AA3021 Series

Blue 470nm LED Indication - Discrete 2.65V 2-SMD, J-Lead
