1424536

Active

Phoenix Contact

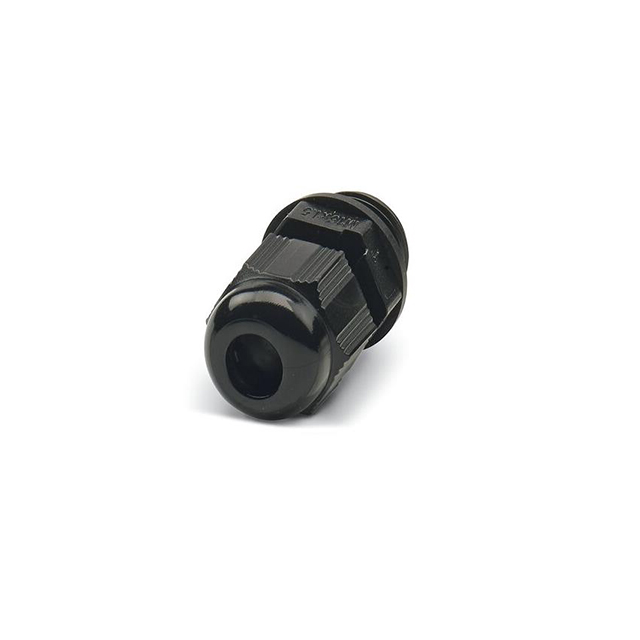

CABLE GLAND 4-7MM M16 POLYAMIDE

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 4-7MM M16 POLYAMIDE

Technical Specifications

Parameters and characteristics for this part

Specification	1424536

Color	Black
Includes	Seal, Gasket
Ingress Protection	IP66/IP67
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Outside Cable Diameter (Max) [Max] [diameter]	7 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.276 in
Outside Cable Diameter (Min) [Min]	0.157 in
Outside Cable Diameter (Min) [Min]	4 mm
Thread Length	10 mm
Thread Length	0.394 in
Thread Size	M16x1.5
Type	Cable Gland

Part	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Material	Type	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Color	Includes	Thread Length	Thread Length	Thread Size	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]
Phoenix Contact 1424535	100 °C	-20 C	IP66/IP67	Polyamide (PA) Nylon	Cable Gland	7 mm	0.276 in	Black	Gasket Seal	8 mm	0.315 in	M12x1.5	0.157 in	4 mm
Phoenix Contact 1424536	100 °C	-20 C	IP66/IP67	Polyamide (PA) Nylon	Cable Gland	7 mm	0.276 in	Black	Gasket Seal	10 mm	0.394 in	M16x1.5	0.157 in	4 mm
Phoenix Contact 1424537	100 °C	-20 C	IP66/IP67	Polyamide (PA) Nylon	Cable Gland			Black	Gasket Seal	10 mm	0.394 in	M20x1.5			6 mm	0.236 in	0.433 in	11 mm
Phoenix Contact 1424533	100 °C	-20 C	IP66/IP67	Polyamide (PA) Nylon	Cable Gland	7 mm	0.276 in	Gray	Gasket Seal	10 mm	0.394 in	M16x1.5	0.157 in	4 mm
Phoenix Contact 1424534	100 °C	-20 C	IP66/IP67	Polyamide (PA) Nylon	Cable Gland			Gray	Gasket Seal	10 mm	0.394 in	M20x1.5			6 mm	0.236 in	0.433 in	11 mm
Phoenix Contact 1424539	100 °C	-20 C	IP66/IP67	Brass Nickel Plated	Cable Gland	7 mm	0.276 in	Silver	Gasket Seal			M16x1.5	0.157 in	4 mm
Phoenix Contact 1424538	100 °C	-20 C	IP66/IP67	Brass Nickel Plated	Cable Gland	7 mm	0.276 in	Silver	Gasket Seal	6 mm	0.236 in	M12x1.5	0.157 in	4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.67

General part information

Cable Gland Polyamide (PA), Nylon M16x1.5 Black
