156-00858

Active

HELLERMANNTYTON

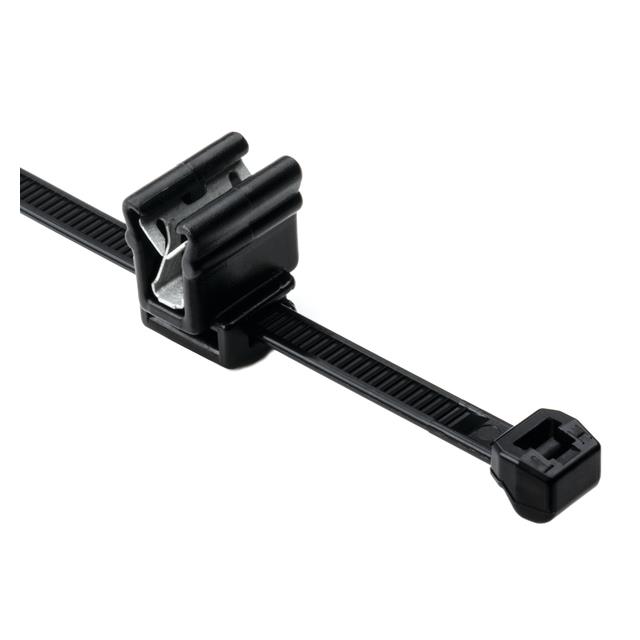

CABLE TIE, NYLON 6.6 HS (POLYAMIDE 6.6 HS) (HEAT STABILISED), BLACK, 150 MM, 4.6 MM, 35 MM, 50 LB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMaterials Guide for Bundling & Securing Datasheet +1

156-00858

Active

HELLERMANNTYTON

CABLE TIE, NYLON 6.6 HS (POLYAMIDE 6.6 HS) (HEAT STABILISED), BLACK, 150 MM, 4.6 MM, 35 MM, 50 LB

Deep-Dive with AI

DocumentsMaterials Guide for Bundling & Securing Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	156-00858

Bundle Diameter	31 mm
Bundle Diameter	1.22 in
Color	Black
Features	Heat Stabilized
Length - Actual [x]	5.91 "
Length - Actual [x]	150 mm
Length - Actual [x]	0.492 ft
Length - Approximate [x]	6 in
Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Edge Clip
Tensile Strength	22.68 kg
Tensile Strength	50 lbs
Width [y]	0.181 in
Width [y]	4.6 mm
Wire/Cable Tie Type	Standard, Locking

156-00 Series

Cable Tie Mounts 1-Piece Cable Tie/Arrowhead Mount with Seal, 6.5" Long, 50lb Tensile, PA66HS, Natural, 4000/carton

Part	Mounting Type	Wire/Cable Tie Type	Length - Actual [x]	Length - Actual [x]	Length - Actual [x]	Length - Approximate [x]	Material	Tensile Strength	Tensile Strength	Features	Width [y]	Width [y]	Color	Bundle Diameter	Bundle Diameter	Length - Approximate	Width [x]	Width [x]	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Length - Actual	Length - Actual	Length - Actual	Type
HELLERMANNTYTON 156-00858	Edge Clip	Locking Standard	5.91 "	150 mm	0.492 ft	6 in	Polyamide (PA66) Nylon 6/6	22.68 kg	50 lbs	Heat Stabilized	0.181 in	4.6 mm	Black	31 mm	1.22 in
HELLERMANNTYTON 156-00456	Arrowhead Push Mount	Locking Standard	7.9 in	200.66 mm	0.658 ft		Polyamide (PA46) Nylon 4/6	22.68 kg	50 lbs				Gray			8 in	0.18 in	4.57 mm	1.8 "	45.72 mm
HELLERMANNTYTON 156-00878	Edge Clip	Locking Standard					Polyamide (PA66) Nylon 6/6	22.68 kg	50 lbs	Heat Stabilized	0.181 in	4.6 mm	Black			7.75 in			1.77 in	45 mm	200 mm	0.656 ft	7.87 "
HELLERMANNTYTON 156-00874	Edge Clip	Locking Standard					Polyamide (PA66) Nylon 6/6	22.68 kg	50 lbs	Heat Stabilized	0.181 in	4.6 mm	Black			7.75 in			1.77 in	45 mm	200 mm	0.656 ft	7.87 "
HELLERMANNTYTON 156-00540	Edge Clip	Locking Standard	7.95 "	202 mm	0.663 ft		Polyamide (PA66) Nylon 6/6	22.68 kg	50 lbs	Heat Stabilized	0.181 in	4.6 mm	Black			8 in			1.77 in	45 mm
HELLERMANNTYTON 156-00537	Edge Clip	Locking Standard					Polyamide (PA66) Nylon 6/6	22.68 kg	50 lbs	Heat Stabilized	0.181 in	4.6 mm	Black			7.75 in			1.77 in	45 mm	200 mm	0.656 ft	7.87 "
HELLERMANNTYTON 156-00940	Edge Clip	Locking Standard	8 in	203.2 mm	0.667 ft		Polyamide (PA66) Nylon 6/6	22.68 kg	50 lbs				Natural			8 in	0.18 in	4.57 mm	2 in	50.8 mm
HELLERMANNTYTON 126-00326	Arrowhead Push Mount	Locking Standard				6 in	Polyamide (PA66) Nylon 6/6	22.68 kg	50 lbs				Black	35 mm	1.38 in		0.18 in	4.57 mm
HELLERMANNTYTON 156-00093	Fir Tree Push Mount	Locking Standard					Polyamide (PA66) Nylon 6/6	22.68 kg	50 lbs	Heat Stabilized Impact Modified UV Resistant			Black			15 in	0.185 in	4.7 mm	4.33 "	110 mm
HELLERMANNTYTON 156-00694										Heat Stabilized			Black											Clip

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	500	$ 1.08
Newark	Pack of 500	1	$ 570.09
		2	$ 487.34
		5	$ 456.69
		10	$ 432.17
		20	$ 419.91

Description

General part information

156-00 Series

Cable Tie Mounts 1-Piece Cable Tie/Arrowhead Mount with Seal, 6.5" Long, 50lb Tensile, PA66HS, Natural, 4000/carton
