R2D225-AG02-10
Activeebm-papst Inc.

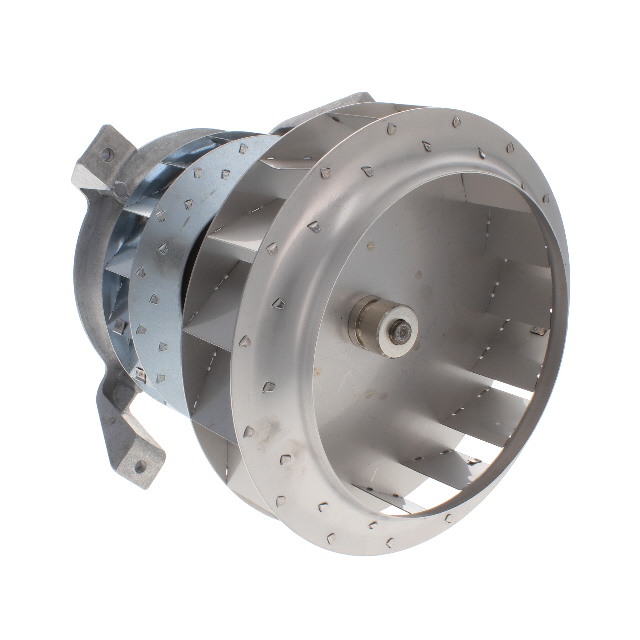

MOTORIZED IMPELLER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
R2D225-AG02-10
Activeebm-papst Inc.
MOTORIZED IMPELLER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | R2D225-AG02-10 |
|---|---|
| Approval Agency | CE, EAC |
| Bearing Type | Ball |
| Current Rating (Amps) [Max] | 0.67 A |
| Current Rating (Amps) [Min] | 0.39 A |
| Fan Type | Blower, Centrifugal |
| Features | Dual Voltage |
| Operating Temperature [Max] | 75 °C |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -25 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 250 W |
| RPM | 3000 RPM |
| Size / Dimension [diameter] | 250 mm |
| Termination | Terminal Block |
| Voltage - Rated | 230 VAC, 400 VAC |
| Width [y] | 229 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 684.62 | |
| 10 | $ 631.58 | |||
Description
General part information
R2D225 Series
Fan Blower, Centrifugal 230/400VAC Round - 250mm Dia Ball Terminal Block
