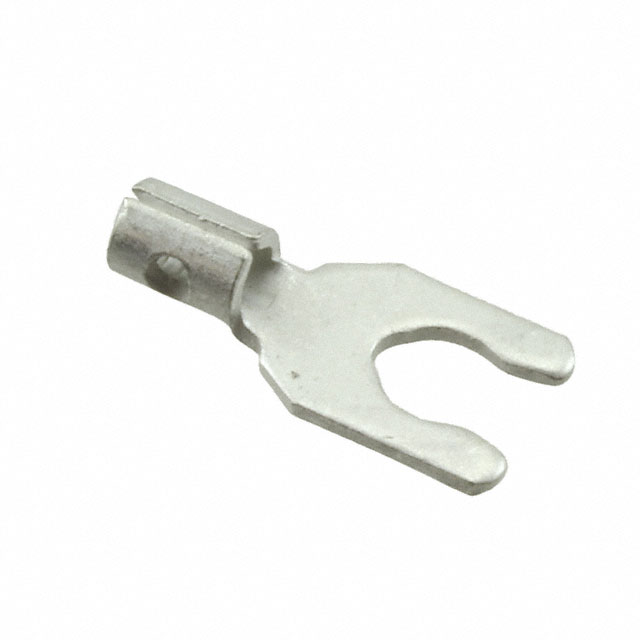

0190980017

Active

Molex

CONN SPADE TERM 18-22AWG #5

Deep-Dive with AI

Search across all available documentation for this part.

Documents0190440069 Drawing/Datasheet

0190980017

Active

Molex

CONN SPADE TERM 18-22AWG #5

Deep-Dive with AI

Documents0190440069 Drawing/Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0190980017

Contact Finish	Electro-Tin
Contact Material	Copper
Insulation	Non-Insulated
Length - Overall [x]	0.585 "
Length - Overall [x]	14.86 mm
Length - Ring Center to Termination	0.23 in
Length - Ring Center to Termination	5.84 mm
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	5 Stud
Terminal Type	Snap, Spring
Termination	Crimp
Tongue Inside Opening [x]	2.67 mm
Tongue Inside Opening [x]	0.105 in
Width - Outer Edges [x]	6.73 mm
Width - Outer Edges [x]	0.265 in
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

019098 Series

Part	Terminal Type	Termination	Stud/Tab Size	Width - Outer Edges	Width - Outer Edges [y]	Length - Termination [custom]	Length - Termination [custom]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Mounting Type	Contact Finish	Insulation	Contact Material	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Wire Gauge [Max]	Wire Gauge [Min]	Length - Overall [x]	Length - Overall [x]	Length - Overall	Stud/Tab Size	Width - Outer Edges [y]	Length - Ring Center to Termination	Length - Ring Center to Termination	Width - Outer Edges	Length - Termination	Length - Termination	Width - Outer Edges [x]	Width - Outer Edges [x]
Molex 0190980091	Snap Spring	Crimp	8 Stud	7.87 mm	0.31 in	0.245 in	6.22 mm	6.63 mm	0.261 in	Free Hanging (In-Line)	Electro-Tin	Non-Insulated	Copper	3.53 mm	0.139 in	12 AWG	10 AWG	0.725 in	18.42 mm
Molex 0190980075	Snap Spring	Crimp			0.33 in	0.245 in	6.22 mm	6.63 mm	0.261 in	Free Hanging (In-Line)	Electro-Tin	Non-Insulated	Copper	3.96 mm	0.156 in	12 AWG	10 AWG	0.773 in		19.63 mm	10 Stud	8.38 mm
Molex 0190980068	Snap Spring	Crimp	5 Stud		0.25 "	0.245 in	6.22 mm			Free Hanging (In-Line)	Electro-Tin	Non-Insulated	Copper	2.67 mm	0.105 in	12 AWG	10 AWG	0.664 in	16.87 mm			6.35 mm	0.23 in	5.84 mm
Molex 0190980069	Snap Spring	Crimp			0.25 "	0.245 in	6.22 mm			Free Hanging (In-Line)	Electro-Tin	Non-Insulated	Copper	2.9 mm	0.114 in	12 AWG	10 AWG	0.664 in	16.87 mm		6 Stud	6.35 mm	0.23 in	5.84 mm
Molex 0190980050	Snap Spring	Crimp	8 Stud	8.64 mm				6.63 mm	0.261 in	Free Hanging (In-Line)	Electro-Tin	Non-Insulated	Copper	3.96 mm	0.156 in			0.694 in		17.63 mm					0.34 in	0.179 "	4.55 mm
Molex 0190980080	Snap Spring	Crimp	8 Stud	7.87 mm	0.31 in			6.63 mm	0.261 in	Free Hanging (In-Line)	Electro-Tin	Non-Insulated	Copper	3.53 mm	0.139 in	22 AWG	17.5 AWG	0.646 in	16.41 mm							0.165 in	4.19 mm
Molex 0190980023	Snap Spring	Crimp	8 Stud	7.87 mm	0.31 in			6.63 mm	0.261 in	Free Hanging (In-Line)	Electro-Tin	Non-Insulated	Copper	3.53 mm	0.139 in	22 AWG	17.5 AWG	0.646 in	16.41 mm							0.165 in	4.19 mm
Molex 0190980024	Snap Spring	Crimp			0.33 in			6.63 mm	0.261 in	Free Hanging (In-Line)	Electro-Tin	Non-Insulated	Copper	3.96 mm	0.156 in	22 AWG	17.5 AWG	0.694 in		17.63 mm	10 Stud	8.38 mm				0.165 in	4.19 mm
Molex 0190980017	Snap Spring	Crimp	5 Stud							Free Hanging (In-Line)	Electro-Tin	Non-Insulated	Copper	2.67 mm	0.105 in	22 AWG	17.5 AWG	0.585 "	14.86 mm				0.23 in	5.84 mm				6.73 mm	0.265 in
Molex 0190980074	Snap Spring	Crimp			0.33 in	0.245 in	6.22 mm	6.63 mm	0.261 in	Free Hanging (In-Line)	Electro-Tin	Non-Insulated	Copper	3.96 mm	0.156 in	12 AWG	10 AWG	0.773 in		19.63 mm	10 Stud	8.38 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.14
		10	$ 0.11
		100	$ 0.08
		1000	$ 0.06
		3000	$ 0.06

Description

General part information

019098 Series

5 Stud Spade Terminal Connector Crimp 18-22 AWG

Documents

Technical documentation and resources

0190440069 Drawing/Datasheet

Datasheet
