FH39J-45S-0.3SHW(99)

Obsolete

Hirose Electric USA, Inc.

CONN FPC 45POS 0.3MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFH39 Series Datasheet~Datasheet

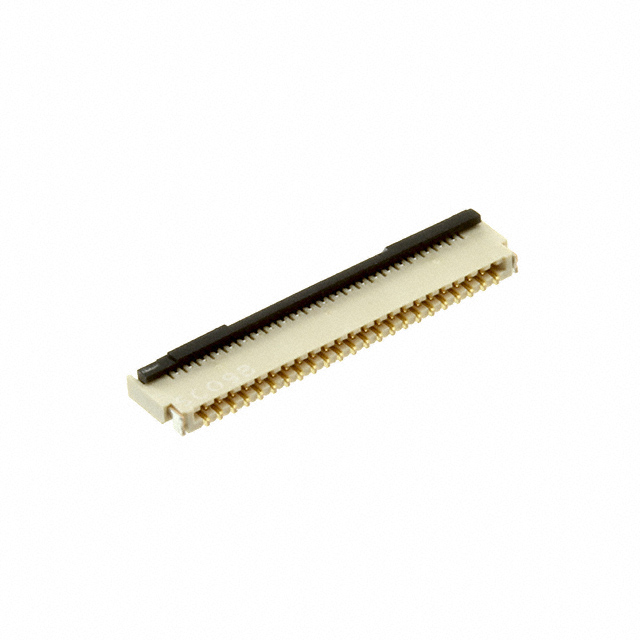

FH39J-45S-0.3SHW(99)

Obsolete

Hirose Electric USA, Inc.

CONN FPC 45POS 0.3MM R/A

Deep-Dive with AI

DocumentsFH39 Series Datasheet~Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FH39J-45S-0.3SHW(99)

Actuator Color	Black
Actuator Material	Nylon, Polyamide (PA)
Cable End Type	Tapered
Connector/Contact Type	Contacts, Top and Bottom
Contact Finish	Gold
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.2 A
FFC, FCB Thickness	0.2 mm
Flat Flex Type	FPC
Height Above Board [z]	1.12 mm
Height Above Board [z]	0.044 in
Housing Color	Beige
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Locking Feature	Flip Lock, Backlock
Material Flammability Rating	UL94 V-0
Mating Cycles	10
Mounting Type	Surface Mount, Right Angle
Number of Positions	45
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.012 in
Pitch [x]	0.3 mm
Termination	Solder
Voltage Rating	30 VDC

FH39 Series

Part	Mounting Type	Height Above Board [z]	Height Above Board [z]	Actuator Material	Cable End Type	FFC, FCB Thickness	Current Rating (Amps)	Termination	Mating Cycles	Voltage Rating	Material Flammability Rating	Flat Flex Type	Contact Material	Pitch [x]	Pitch [x]	Contact Finish	Locking Feature	Connector/Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Actuator Color	Housing Material	Number of Positions	Contact Finish Thickness	Contact Finish Thickness
Hirose Electric USA, Inc. FH39-51S-0.3SHW(99)	Surface Mount Right Angle	1.12 mm	0.044 in	Nylon Polyamide (PA)	Tapered	0.2 mm	0.2 A	Solder	10	30 VDC	UL94 V-0	FPC	Phosphor Bronze	0.012 in	0.3 mm	Gold	Backlock Flip Lock	Contacts Top and Bottom	85 °C	-55 °C	Beige	Black	Liquid Crystal Polymer (LCP)	51
Hirose Electric USA, Inc. FH39-29S-0.3SHW(99)	Surface Mount Right Angle	1.12 mm	0.044 in	Nylon Polyamide (PA)	Tapered	0.2 mm	0.2 A	Solder	10	30 VDC	UL94 V-0	FPC	Phosphor Bronze	0.012 in	0.3 mm	Gold	Backlock Flip Lock	Contacts Top and Bottom	85 °C	-55 °C	Beige	Black	Liquid Crystal Polymer (LCP)	29
Hirose Electric USA, Inc. FH39-51S-0.3SHW(10)	Surface Mount Right Angle	1.12 mm	0.044 in	Nylon Polyamide (PA)	Tapered	0.2 mm	0.2 A	Solder	10	30 VDC	UL94 V-0	FPC	Phosphor Bronze	0.012 in	0.3 mm	Gold	Backlock Flip Lock	Contacts Top and Bottom	85 °C	-55 °C	Beige	Black	Liquid Crystal Polymer (LCP)	51	19.7 µin	0.5 µm
Hirose Electric USA, Inc. FH39-33S-0.3SHW(10)	Surface Mount Right Angle	1.12 mm	0.044 in	Nylon Polyamide (PA)	Tapered	0.2 mm	0.2 A	Solder	10	30 VDC	UL94 V-0	FPC	Phosphor Bronze	0.012 in	0.3 mm	Gold	Backlock Flip Lock	Contacts Top and Bottom	85 °C	-55 °C	Beige	Black	Liquid Crystal Polymer (LCP)	33	19.7 µin	0.5 µm
Hirose Electric USA, Inc. FH39J-51S-0.3SHW(10)	Surface Mount Right Angle	1.12 mm	0.044 in	Nylon Polyamide (PA)	Tapered	0.2 mm	0.2 A	Solder	10	30 VDC	UL94 V-0	FPC	Phosphor Bronze	0.012 in	0.3 mm	Gold	Backlock Flip Lock	Contacts Top and Bottom	85 °C	-55 °C	Beige	Black	Liquid Crystal Polymer (LCP) Halogen Free	51	19.7 µin	0.5 µm
Hirose Electric USA, Inc. FH39-29S-0.3SHW(10)	Surface Mount Right Angle	1.12 mm	0.044 in	Nylon Polyamide (PA)	Tapered	0.2 mm	0.2 A	Solder	10	30 VDC	UL94 V-0	FPC	Phosphor Bronze	0.012 in	0.3 mm	Gold	Backlock Flip Lock	Contacts Top and Bottom	85 °C	-55 °C	Beige	Black	Liquid Crystal Polymer (LCP)	29	19.7 µin	0.5 µm
Hirose Electric USA, Inc. FH39J-45S-0.3SHW(99)	Surface Mount Right Angle	1.12 mm	0.044 in	Nylon Polyamide (PA)	Tapered	0.2 mm	0.2 A	Solder	10	30 VDC	UL94 V-0	FPC	Phosphor Bronze	0.012 in	0.3 mm	Gold	Backlock Flip Lock	Contacts Top and Bottom	85 °C	-55 °C	Beige	Black	Liquid Crystal Polymer (LCP) Halogen Free	45
Hirose Electric USA, Inc. FH39J-25S-0.3SHW(10)	Surface Mount Right Angle	1.12 mm	0.044 in	Nylon Polyamide (PA)	Tapered	0.2 mm	0.2 A	Solder	10	30 VDC	UL94 V-0	FPC	Phosphor Bronze	0.012 in	0.3 mm	Gold	Backlock Flip Lock	Contacts Top and Bottom	85 °C	-55 °C	Beige	Black	Liquid Crystal Polymer (LCP) Halogen Free		19.7 µin	0.5 µm
Hirose Electric USA, Inc. FH39J-27S-0.3SHW(10)	Surface Mount Right Angle	1.12 mm	0.044 in	Nylon Polyamide (PA)	Tapered	0.2 mm	0.2 A	Solder	10	30 VDC	UL94 V-0	FPC	Phosphor Bronze	0.012 in	0.3 mm	Gold	Backlock Flip Lock	Contacts Top and Bottom	85 °C	-55 °C	Beige	Black	Liquid Crystal Polymer (LCP) Halogen Free	27	19.7 µin	0.5 µm
Hirose Electric USA, Inc. FH39A-67S-0.3SHW(10)	Surface Mount Right Angle	1.12 mm	0.044 in	Nylon Polyamide (PA)	Tapered	0.2 mm	0.2 A	Solder	10	30 VDC	UL94 V-0	FPC	Phosphor Bronze	0.012 in	0.3 mm	Gold	Backlock Flip Lock	Contacts Top and Bottom	85 °C	-55 °C	Beige	Black	Liquid Crystal Polymer (LCP)	67	19.7 µin	0.5 µm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

FH39 Series

45 Position FPC Connector Contacts, Top and Bottom 0.012" (0.30mm) Surface Mount, Right Angle

Documents

Technical documentation and resources

FH39 Series Datasheet~

Datasheet
