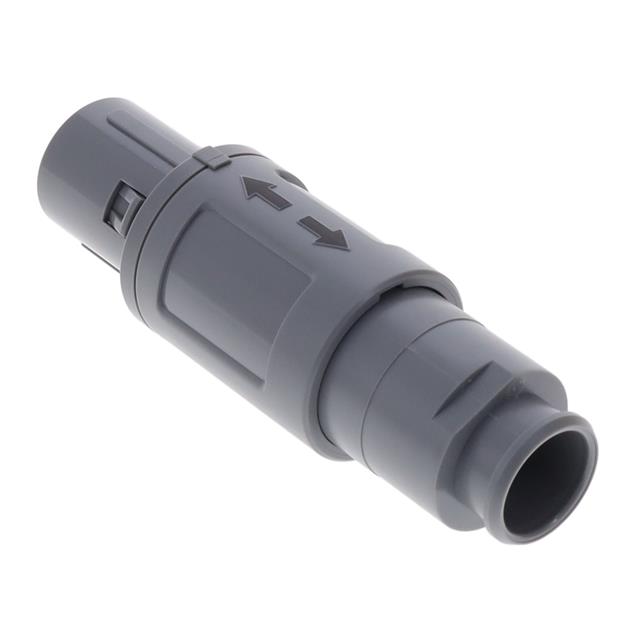

CAB.M19.GLA.C92GZ

Active

LEMO

CONN PLUG MALE 19P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CAB.M19.GLA.C92GZ

Active

LEMO

CONN PLUG MALE 19P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CAB.M19.GLA.C92GZ

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement
Backshell Material, Plating	Polysulfone (PSU)
Cable Opening [Max] [custom]	0.362 in
Cable Opening [Max] [custom]	9.2 mm
Cable Opening [Min] [custom]	0.287 in
Cable Opening [Min] [custom]	7.3 mm
Color	Gray
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Current Rating (Amps)	5 A
Fastening Type	Detent Lock, Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Number of Positions	19
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C
Orientation	B
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shell Size - Insert	M19
Shielding	Unshielded

CAB.M19 Series

Part	Shell Size - Insert	Mounting Type	Connector Type	Color	Number of Positions	Contact Finish - Mating	Shielding	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material	Applications	Current Rating (Amps)	Primary Material	Insert Material	Ingress Protection	Features	Orientation	Cable Opening [custom]	Cable Opening [custom]	Backshell Material, Plating	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]
LEMO CAB.M19.GLA.C72GZ	M19	Free Hanging (In-Line)	Male Pins Plug	Gray	19	Gold	Unshielded	Detent Lock Push-Pull	150 °C	-50 °C	Polysulfone (PSU)	Automotive Industrial Medical Testing Equipment & Measurement	5 A	Plastic	Polyetheretherketone (PEEK)	IP50	Backshell	B	5.3 mm 7.2 mm	0.209 in 0.283 in	Polysulfone (PSU)
LEMO CAB.M19.GLA.C92GZ	M19	Free Hanging (In-Line)	Male Pins Plug	Gray	19	Gold	Unshielded	Detent Lock Push-Pull	150 °C	-50 °C	Polysulfone (PSU)	Automotive Industrial Medical Testing Equipment & Measurement	5 A	Plastic	Polyetheretherketone (PEEK)	IP50	Backshell	B			Polysulfone (PSU)	0.362 in	0.287 in	9.2 mm	7.3 mm
LEMO CAB.M19.GLA.C52GZ	M19	Free Hanging (In-Line)	Male Pins Plug	Gray	19	Gold	Unshielded	Detent Lock Push-Pull	150 °C	-50 °C	Polysulfone (PSU)	Automotive Industrial Medical Testing Equipment & Measurement	5 A	Plastic	Polyetheretherketone (PEEK)	IP50	Backshell	B			Polysulfone (PSU)					3.2 mm	0.126 in	5.2 mm	0.205 in
LEMO CAB.M19.GLA.C52G	M19	Free Hanging (In-Line)	Male Pins Plug	Gray	19	Gold	Unshielded	Detent Lock Push-Pull	150 °C	-50 °C	Polysulfone (PSU)	Automotive Industrial Medical Testing Equipment & Measurement	5 A	Plastic	Polyetheretherketone (PEEK)	IP50	Backshell	B			Polysulfone (PSU)					3.2 mm	0.126 in	5.2 mm	0.205 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 48.88
		10	$ 44.86
		25	$ 43.13
		50	$ 41.69
		100	$ 39.39
		250	$ 38.24

Description

General part information

CAB.M19 Series

19 Position Circular Connector Plug, Male Pins Solder Cup
