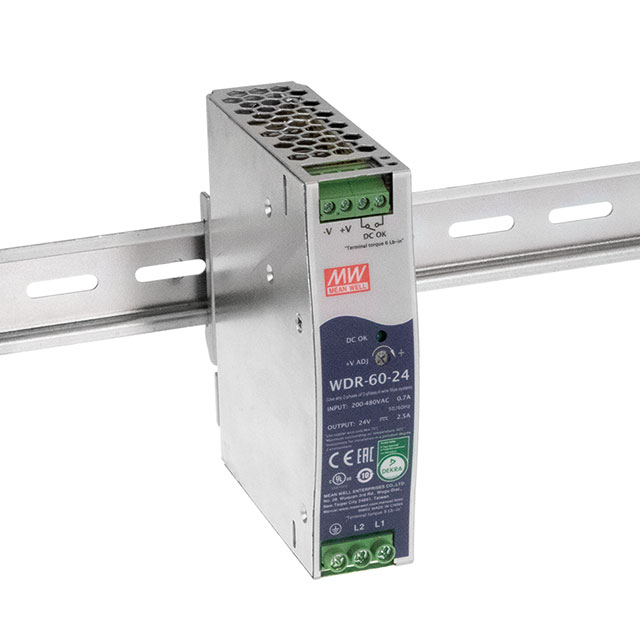

WDR-60-24

Active

MEAN WELL USA Inc.

AC/DC DIN RAIL SUPPLY 24V 60W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC DIN RAIL SUPPLY 24V 60W

Technical Specifications

Parameters and characteristics for this part

Part	Features	AC Voltage - Input [Max]	AC Voltage - Input [Min]	DC Voltage - Input (Max) [Max]	Applications	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	DC Voltage - Input (Min) [Min]	Voltage - Output 1	Approval Agency	Input Type	Efficiency	Current - Output (Max) [Max]	Voltage - Isolation
MEAN WELL USA Inc. WDR-60-48	Adjustable Output	550 VAC	180 VAC	780 V	Laboratory	1	85 °C	-30 °C	254 V	48 V	CE EAC TUV UL	AC or DC	90.5 %	1.25 A	4.7 kV
MEAN WELL USA Inc. WDR-60-24	Adjustable Output	550 VAC	180 VAC	780 V	Laboratory	1	85 °C	-30 °C	254 V	24 V	CE EAC TUV UL	AC or DC	89 %	2.5 A	4.7 kV
MEAN WELL USA Inc. WDR-60-12	Adjustable Output	550 VAC	180 VAC	780 V	Laboratory	1	85 °C	-30 °C	254 V	12 V	CE EAC TUV UL	AC or DC	86.5 %	5 A	4.7 kV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 24V 60W
