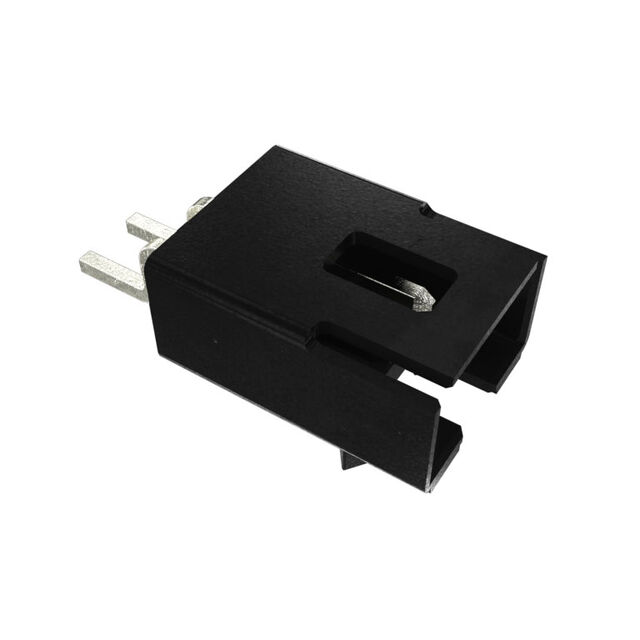

FLM-P22-00
ActiveAmphenol ICC (Commercial Products)
RECEPTACLE, FLM SERIES, ZHAGA BO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FLM-P22-00
ActiveAmphenol ICC (Commercial Products)
RECEPTACLE, FLM SERIES, ZHAGA BO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FLM-P22-00 |
|---|---|
| Connector Type | Receptacle |
| Fastening Type | Latch Lock |
| Housing Color | Black |
| Housing Material | Thermoplastic |
| Mounting Type | Board Edge, Right Angle, Surface Mount |
| Number of Positions | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.11 in |
| Pitch [x] | 2.8 mm |
| Style | Cable/Wire to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.83 | |
| 10 | $ 1.59 | |||
| 100 | $ 1.43 | |||
| Digi-Reel® | 1 | $ 1.83 | ||
| 10 | $ 1.59 | |||
| 100 | $ 1.43 | |||
| Tape & Reel (TR) | 550 | $ 1.10 | ||
| 1100 | $ 1.02 | |||
| 1650 | $ 0.98 | |||
| 2750 | $ 0.93 | |||
| 3850 | $ 0.90 | |||
| 5500 | $ 0.87 | |||
Description
General part information
FLM-P22 Series
SSL Connector 2 Position Receptacle Cable/Wire to Cable/Wire 0.110" (2.80mm) Solder
