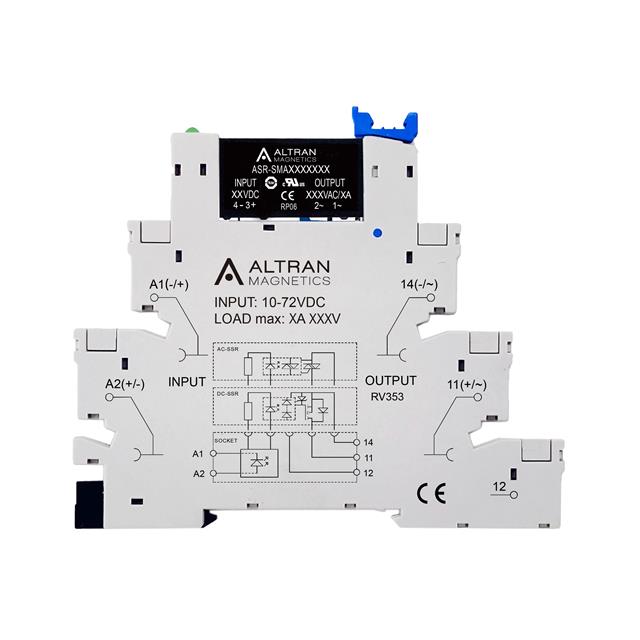

ASR-SMA240D2ZN-K
ActiveAltran Magnetics, LLC
RELAY SSR 25MA 6V DC-IN 2A 280V AC-OUT 4-PIN BULK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ASR-SMA240D2ZN-K
ActiveAltran Magnetics, LLC
RELAY SSR 25MA 6V DC-IN 2A 280V AC-OUT 4-PIN BULK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ASR-SMA240D2ZN-K |
|---|---|
| Approval Agency | cURus, CE, TUV |
| Load Current | 2 A |
| Mounting Type | DIN Rail |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Output Type | AC, Zero Cross |
| Package / Case | Module |
| Termination Style | Screw Terminal |
| Voltage - Input | 5 VDC |
| Voltage - Load [Max] | 280 V |
| Voltage - Load [Min] | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 20.87 | |
| 10 | $ 19.82 | |||
| 25 | $ 18.78 | |||
| 50 | $ 17.74 | |||
| 100 | $ 16.69 | |||
| 250 | $ 15.65 | |||
| 500 | $ 14.61 | |||
Description
General part information
ASR-SMA Series
Solid State SPST-NO (1 Form A) Module
