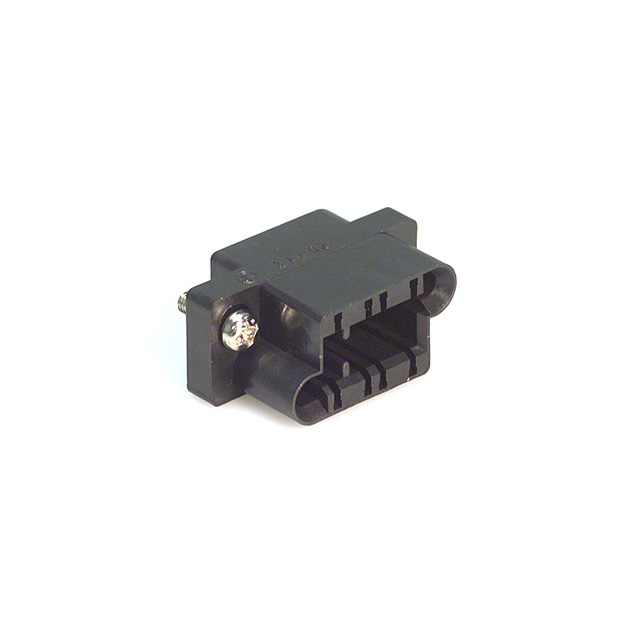

QR/P4-8S-C(01)

Obsolete

Hirose Electric USA, Inc.

RACK AND PANEL CONNECTOR, 8 CONTACT(S), FEMALE, CRIMP TERMINAL, SOCKET,

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

RACK AND PANEL CONNECTOR, 8 CONTACT(S), FEMALE, CRIMP TERMINAL, SOCKET,

Technical Specifications

Parameters and characteristics for this part

Part	Features	Number of Rows	Connector Type	Color	Pitch [x]	Pitch [x]	Connector Style	Note	Connector Usage	Number of Positions	Accessory Type	Specifications
Hirose Electric USA, Inc. QR/P4-8S-C(01)	Mating Guide	2	Housing for Female Sockets	Black	2.54 mm	0.1 in	Rack and Panel	Contacts Not Included	Receptacle	8
Hirose Electric USA, Inc. QR/P4-24S-C(01)	Mating Guide	2	Housing for Female Sockets	Black	2.54 mm	0.1 in	Rack and Panel	Contacts Not Included	Receptacle	24
Hirose Electric USA, Inc. QR/P4-SCREW											Screw	M3 Thread

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

8 Position Housing for Female Sockets Connector Black Panel Mount Rack and Panel
