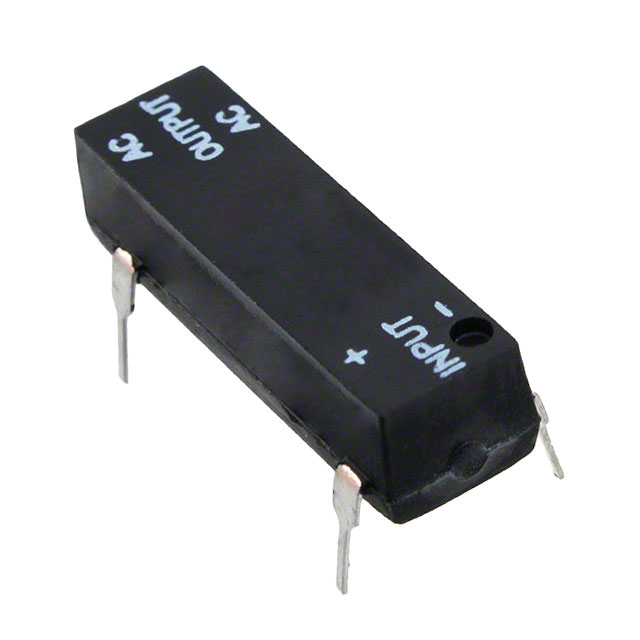

SDV2415
ActiveSensata-Crydom
SSR RELAY SPST-NO 1.5A 12-280V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsCE Declaration of Conformity
SDV2415
ActiveSensata-Crydom
SSR RELAY SPST-NO 1.5A 12-280V
Deep-Dive with AI
DocumentsCE Declaration of Conformity
Technical Specifications
Parameters and characteristics for this part
| Specification | SDV2415 |
|---|---|
| Approval Agency | CSA, UR, CE |
| Load Current | 1.5 A |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Output Type | AC, Zero Cross |
| Package / Case | 4 Lead, 7.62 mm, 0.3 in |
| Package / Case | 16-DIP |
| Supplier Device Package | 16-DIP |
| Termination Style | PC Pin |
| Voltage - Input [Max] | 10 V |
| Voltage - Input [Min] | 3.5 V |
| Voltage - Load [Max] | 280 V |
| Voltage - Load [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 21.80 | |
| 10 | $ 20.76 | |||
| 50 | $ 19.82 | |||
| 100 | $ 19.24 | |||
Description
General part information
SDV2415 Series
Solid State SPST-NO (1 Form A) 16-DIP (0.300", 7.62mm), 4 Leads
