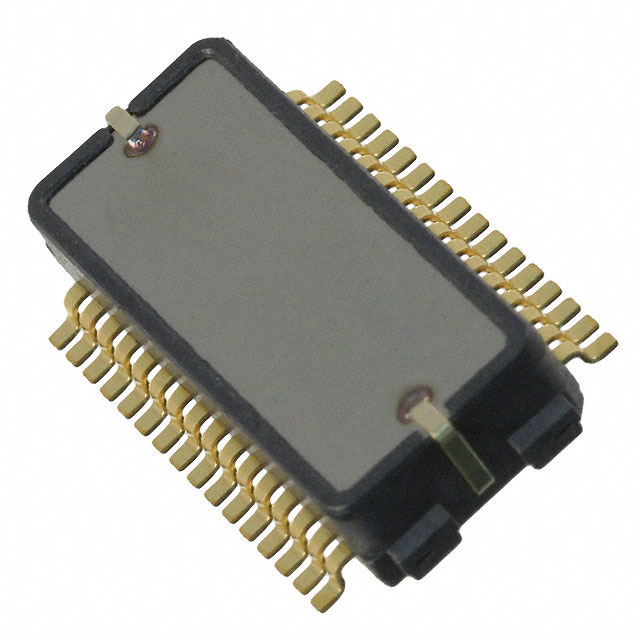

SCR1100-D02-05
ActiveMurata Power Solutions Inc.
SENSOR GYRO 100DEG SNGL AXIS SPI
Deep-Dive with AI
Search across all available documentation for this part.
SCR1100-D02-05
ActiveMurata Power Solutions Inc.
SENSOR GYRO 100DEG SNGL AXIS SPI
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SCR1100-D02-05 |
|---|---|
| Axis | X (Pitch) |
| Bandwidth | 50 Hz |
| Current - Supply | 46 mA |
| Features | Temperature Sensor |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | SPI |
| Package / Case | 32-BSOP |
| Package / Case [x] | 0.335 in |
| Package / Case [y] | 8.5 mm |
| Range °/s [Max] | 100 °/s |
| Range °/s [Min] | -100 °/s |
| Sensitivity (LSB/(°/s)) | 50 LSB/(°/s) |
| Type | Digital |
| Voltage - Supply [Max] | 5.25 V, 3.6 V |
| Voltage - Supply [Min] | 4.75 V, 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SCR1100 Series
Gyroscope X (Pitch) ±100 50Hz SPI
Documents
Technical documentation and resources
No documents available
