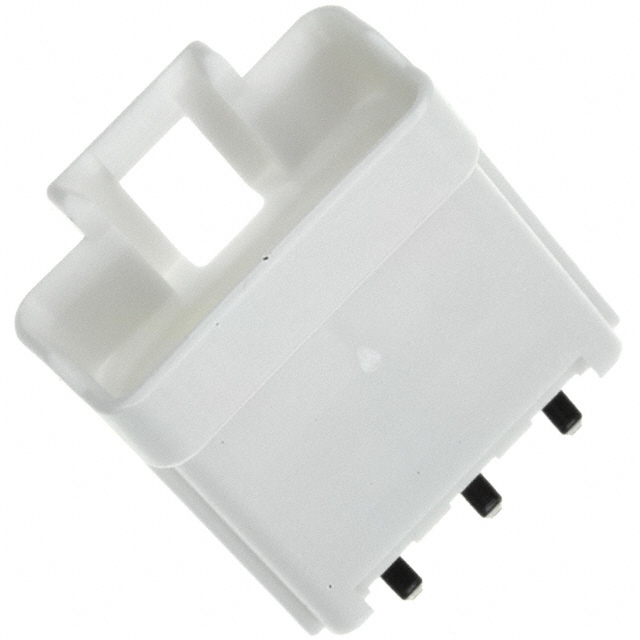

B03B-WPJSS-1

Active

JST Sales America Inc.

CONN HEADER VERT 3POS 5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 3POS 5MM

Technical Specifications

Parameters and characteristics for this part

Specification	B03B-WPJSS-1

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	7 A
Fastening Type	Latch Holder
Features	Board Guide
Ingress Protection	Waterproof
Insulation Color	Natural
Insulation Height	21.41 mm
Insulation Height	0.843 in
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mated Stacking Heights	25.3 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	5 mm
Pitch - Mating	0.197 "
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	300 VDC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mated Stacking Heights	Number of Positions Loaded	Contact Finish - Post	Insulation Height	Insulation Height	Mounting Type	Termination	Fastening Type	Number of Rows	Shrouding	Insulation Color	Features	Contact Type	Style	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Voltage Rating	Material Flammability Rating	Ingress Protection	Contact Shape	Connector Type	Insulation Material	Contact Length - Post	Contact Length - Post	Contact Material
JST Sales America Inc. B03B-WPJES-3	-25 °C	85 °C	25.3 mm	All	Tin	21.41 mm	0.843 in	Through Hole	Solder	Latch Holder	1	Shrouded - 4 Wall	Blue	Board Guide	Male Pin	Board to Cable/Wire	5 mm	0.197 "	7 A	300 VDC	UL94 V-0	Waterproof	Square	Header	Polybutylene Terephthalate (PBT) Glass Filled	0.13 in	3.3 mm	Copper Alloy
JST Sales America Inc. B03B-WPJSS-1	-25 °C	85 °C	25.3 mm	All	Tin	21.41 mm	0.843 in	Through Hole	Solder	Latch Holder	1	Shrouded - 4 Wall	Natural	Board Guide	Male Pin	Board to Cable/Wire	5 mm	0.197 "	7 A	300 VDC	UL94 V-0	Waterproof	Square	Header	Polybutylene Terephthalate (PBT) Glass Filled	0.13 in	3.3 mm	Copper Alloy
JST Sales America Inc. B03B-WPJRS-2	-25 °C	85 °C	25.3 mm	All	Tin	21.41 mm	0.843 in	Through Hole	Solder	Latch Holder	1	Shrouded - 4 Wall	Red	Board Guide	Male Pin	Board to Cable/Wire	5 mm	0.197 "	7 A	300 VDC	UL94 V-0	Waterproof	Square	Header	Polybutylene Terephthalate (PBT) Glass Filled	0.13 in	3.3 mm	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 3 position 0.197" (5.00mm)
