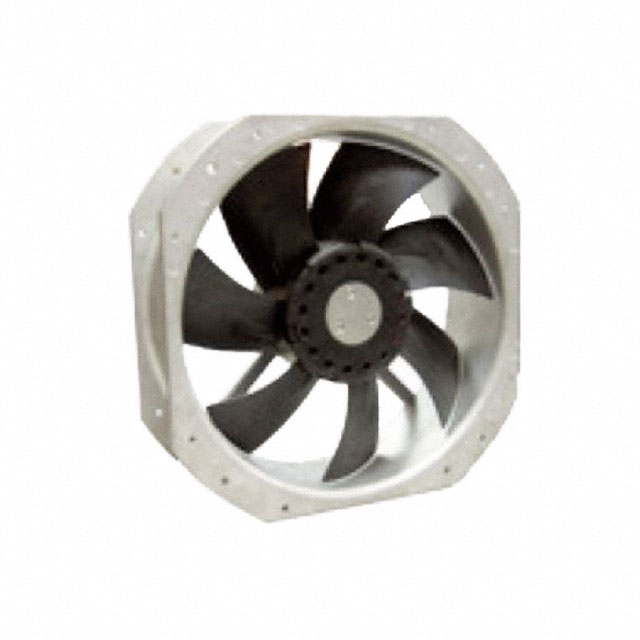

OD280-12HB

Active

Orion Fans

FAN AXIAL 280X89MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

OD280-12HB

Active

Orion Fans

FAN AXIAL 280X89MM 12VDC WIRE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OD280-12HB

Air Flow	1200 CFM
Air Flow	33.6 mł/min
Approval Agency	cURus, TUV
Bearing Type	Ball
Fan Type	Tubeaxial
Lifetime @ Temp.	85000 Hrs
Material - Blade	Thermoplastic, Fiberglass Reinforced
Material - Frame	Aluminum
Noise	72 dB(A)
Operating Temperature [Max]	65 °C
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-15 °C
Operating Temperature [Min]	-15 °C
RPM	2550 RPM
Size / Dimension [x]	280 mm
Size / Dimension [y]	280 mm
Static Pressure	0.9 in H2O
Static Pressure	224.2 Pa
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.5 VDC
Voltage Range [Min]	9 V
Width [y]	89 mm

OD280 Series

Part	Voltage Range [Max]	Voltage Range [Min]	Air Flow	Air Flow	Approval Agency	Voltage - Rated [custom]	Noise	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Power (Watts)	Material - Blade	Width [y]	RPM	Static Pressure	Static Pressure	Material - Frame	Termination	Size / Dimension [x]	Size / Dimension [y]	Fan Type	Lifetime @ Temp.	Bearing Type	Voltage - Rated
Orion Fans OD280-48MB	55 VDC	24 VDC	29.68 m³/min	1060 CFM	cURus TUV	48 VDC	56 dB	65 °C	65 °C	-15 °C	-15 °C	60 W	Thermoplastic Fiberglass Reinforced	89 mm	2200 RPM	161.9 Pa	0.65 in H2O	Aluminum	2 Wire Leads	280 mm	280 mm	Tubeaxial	85000 Hrs	Ball
Orion Fans OD280AN-48HB	55 VDC	24 VDC	33.6 mł/min	1200 CFM	cURus TUV	48 VDC	72 dB(A)	65 °C	65 °C	-15 °C	-15 °C	104 W	Thermoplastic Fiberglass Reinforced	89 mm	2550 RPM	224.2 Pa	0.9 in H2O	Aluminum	2 Wire Leads	280 mm	280 mm	Tubeaxial	85000 Hrs	Ball
Orion Fans OD280-12HB	13.5 VDC	9 V	33.6 mł/min	1200 CFM	cURus TUV		72 dB(A)	65 °C	65 °C	-15 °C	-15 °C		Thermoplastic Fiberglass Reinforced	89 mm	2550 RPM	224.2 Pa	0.9 in H2O	Aluminum	2 Wire Leads	280 mm	280 mm	Tubeaxial	85000 Hrs	Ball	12 VDC
Orion Fans OD280-24HB			33.6 mł/min	1200 CFM	cURus TUV		72 dB(A)	65 °C	65 °C	-15 °C	-15 °C	104 W	Thermoplastic Fiberglass Reinforced	89 mm	2550 RPM	224.2 Pa	0.9 in H2O	Aluminum	2 Wire Leads	280 mm	280 mm	Tubeaxial	85000 Hrs	Ball	24 VDC
Orion Fans OD280-24MB			29.68 m³/min	1060 CFM	cURus TUV		56 dB	65 °C	65 °C	-15 °C	-15 °C	60 W	Thermoplastic Fiberglass Reinforced	89 mm	2200 RPM	161.9 Pa	0.65 in H2O	Aluminum	2 Wire Leads	280 mm	280 mm	Tubeaxial	85000 Hrs	Ball	24 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	2	$ 262.52

Description

General part information

OD280 Series

Fan Tubeaxial 12VDC Square - 280mm L x 280mm H Ball 1200.0 CFM (33.60m³/min) 2 Wire Leads

Documents

Technical documentation and resources

No documents available
