SGTL5000XNLA3

Active

Freescale Semiconductor - NXP

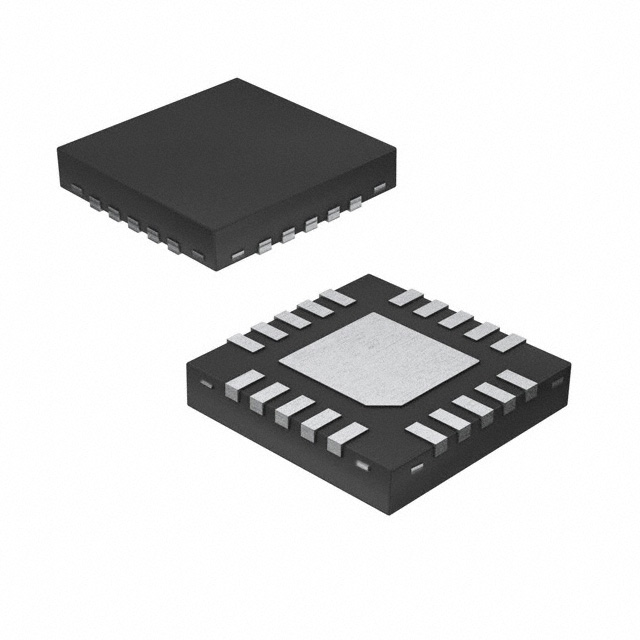

GENERAL PURPOSE AUDIO CODEC 1ADC / 1DAC CH MEDICAL 20-PIN QFN EP TRAY

Search across all available documentation for this part.

Active

Freescale Semiconductor - NXP

GENERAL PURPOSE AUDIO CODEC 1ADC / 1DAC CH MEDICAL 20-PIN QFN EP TRAY

Technical Specifications

Parameters and characteristics for this part

Specification	SGTL5000XNLA3

Data Interface	Serial, SPI™, I2C
Mounting Type	Surface Mount
Number of ADCs / DACs [custom]	1
Number of ADCs / DACs [custom]	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	20-UFQFN Exposed Pad
S/N Ratio, ADCs / DACs (db) Typ [custom]	90 db
S/N Ratio, ADCs / DACs (db) Typ [custom]	100 db
Sigma Delta	False
Supplier Device Package	20-QFN-EP (3x3)
Type	Stereo Audio
Voltage - Supply, Analog [Max]	3.6 V
Voltage - Supply, Analog [Min]	1.62 V
Voltage - Supply, Digital [Max]	2 V, 3.6 V
Voltage - Supply, Digital [Min]	1.1 V, 1.62 V

Part	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Package / Case	S/N Ratio, ADCs / DACs (db) Typ [custom]	S/N Ratio, ADCs / DACs (db) Typ [custom]	Number of ADCs / DACs [custom]	Number of ADCs / DACs [custom]	Supplier Device Package	Type	Data Interface	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]
Freescale Semiconductor - NXP SGTL5000XNLA3	1.62 V	3.6 V	85 °C	-40 °C	Surface Mount	20-UFQFN Exposed Pad	90 db	100 db	1	1	20-QFN-EP (3x3)	Stereo Audio	I2C Serial SPI™	1.1 V 1.62 V	2 V 3.6 V
Freescale Semiconductor - NXP SGTL5000XNAA3R2	1.62 V	3.6 V	85 °C	-40 °C	Surface Mount	32-VFQFN Exposed Pad	90 db	100 db	1	1	32-QFN-EP (5x5)	Stereo Audio	I2C Serial SPI™	1.1 V 1.62 V	2 V 3.6 V
Freescale Semiconductor - NXP SGTL5000XNAA3	1.62 V	3.6 V	85 °C	-40 °C	Surface Mount	32-VFQFN Exposed Pad	90 db	100 db	1	1	32-QFN-EP (5x5)	Stereo Audio	I2C Serial SPI™	1.1 V 1.62 V	2 V 3.6 V
