74AUP1G02FS3-7

Active

Diodes Inc

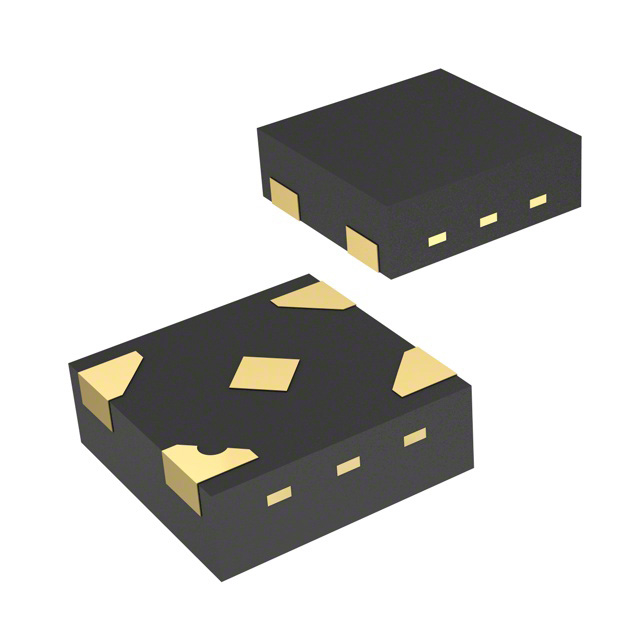

NOR GATE, AUP/ULP/V SERIES, 1-FUNC, 2-INPUT, CMOS, PDSO4, 0.80 X 0.80 MM, GREEN, DFN-4

Search across all available documentation for this part.

Active

Diodes Inc

NOR GATE, AUP/ULP/V SERIES, 1-FUNC, 2-INPUT, CMOS, PDSO4, 0.80 X 0.80 MM, GREEN, DFN-4

Technical Specifications

Parameters and characteristics for this part

Specification	74AUP1G02FS3-7

Current - Output High, Low [custom]	4 mA
Current - Output High, Low [custom]	4 mA
Current - Quiescent (Max) [Max]	500 nA
Input Logic Level - High [Max]	2 V
Input Logic Level - High [Min]	1.6 V
Logic Type	NOR Gate
Max Propagation Delay @ V, Max CL	6.4 ns
Mounting Type	Surface Mount
Number of Circuits	1
Number of Inputs	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	4-XFDFN Exposed Pad
Supplier Device Package	X2-DFN0808-4
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	0.8 V

Single 2 Input NOR Gate

Part	Input Logic Level - High [Max]	Input Logic Level - High [Min]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Inputs	Supplier Device Package	Package / Case	Max Propagation Delay @ V, Max CL	Number of Circuits	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Quiescent (Max) [Max]	Logic Type
Diodes Inc 74AUP1G02FW4-7	2 V	1.6 V	Surface Mount	125 °C	-40 °C	2	X2-DFN1010-6	6-XFDFN	6.4 ns	1	4 mA	4 mA	0.8 V	3.6 V	500 nA	NOR Gate
Diodes Inc 74AUP1G02FS3-7	2 V	1.6 V	Surface Mount	125 °C	-40 °C	2	X2-DFN0808-4	4-XFDFN Exposed Pad	6.4 ns	1	4 mA	4 mA	0.8 V	3.6 V	500 nA	NOR Gate
