56550-501
ActiveLaird Thermal Systems, Inc.

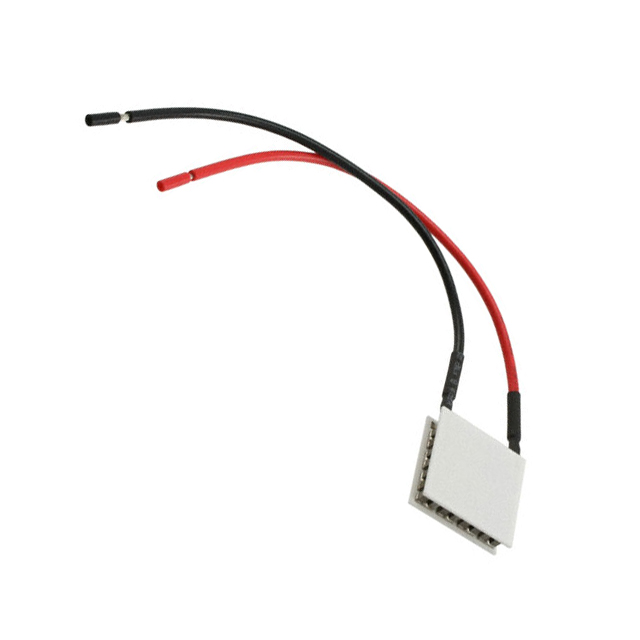

PELTIER MOD CP14,31,10,L1,W4.5
Deep-Dive with AI
Search across all available documentation for this part.
56550-501
ActiveLaird Thermal Systems, Inc.
PELTIER MOD CP14,31,10,L1,W4.5
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 56550-501 |
|---|---|
| Current - Max [Max] | 3.9 A |
| Delta Tmax @ Th | 68 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 4.7 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 8.2 W |
| Size / Dimension [x] | 19.81 mm |
| Size / Dimension [y] | 19.81 mm |
| Voltage - Max [Max] | 3.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 29.05 | |
| 5 | $ 27.41 | |||
| 20 | $ 26.59 | |||
| 40 | $ 25.77 | |||
| 60 | $ 25.11 | |||
| 100 | $ 24.45 | |||
Description
General part information
56550 Series
Peltier Module 8.2W @ 25°C 3.9 A 80°C
Documents
Technical documentation and resources
