P50LE-050P1-R1-DA

Active

3M (TC)

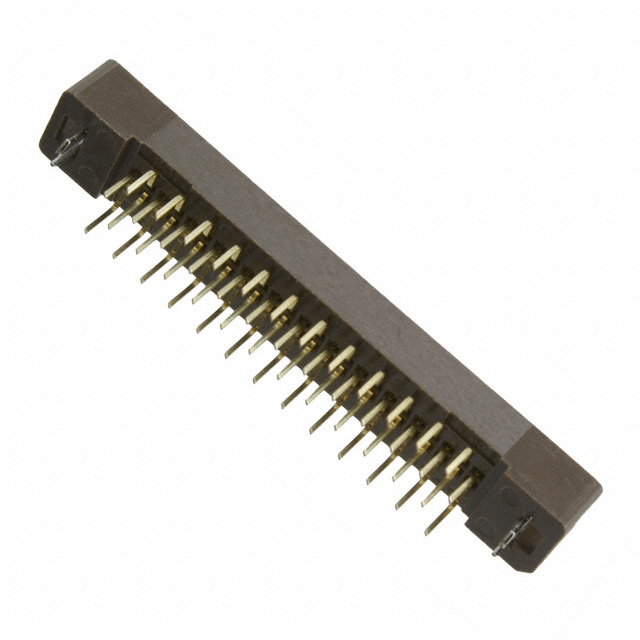

3M PAK 50 LOW PROFILE PLUG, P50LE SERIES, P50LE-050P1-R1-DA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Mating Guide

P50LE-050P1-R1-DA

Active

3M (TC)

3M PAK 50 LOW PROFILE PLUG, P50LE SERIES, P50LE-050P1-R1-DA

Deep-Dive with AI

DocumentsInterconnect Mating Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	P50LE-050P1-R1-DA

Connector Type	Plug
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Type	Center Strip Contact
Current Rating (Amps)	0.5 A
Fastening Type	Latch Holder
Insulation Color	Brown
Insulation Height	0.197 in
Insulation Height	5 mm
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

P50LE Series

Part	Pitch - Mating	Pitch - Mating	Number of Positions	Features	Number of Positions Loaded	Number of Rows	Contact Material	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Current Rating (Amps)	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Insulation Material	Style	Contact Finish - Post	Termination	Contact Finish - Mating	Shrouding	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Insulation Height	Insulation Height	Connector Type	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Insulation Height [z]	Insulation Height [z]
3M (TC) P50LE-050P1-SML-TGF	0.05 in	1.27 mm	50	Board Guide	All	2	Phosphor Bronze	Surface Mount	2.03 µm	80 µin	Brown	0.5 A	Center Strip Contact	2 µin	0.051 µm	UL94 V-0	Polyphenylene Sulfide (PPS)	Board to Cable/Wire	Tin	Solder	Gold	Shrouded - 4 Wall	85 °C	-55 °C	Latch Holder	0.197 in	5 mm	Plug
3M (TC) P50LE-040P1-RR1-DA	0.05 in	1.27 mm	40		All	2	Phosphor Bronze	Through Hole Right Angle			Brown	0.5 A	Center Strip Contact			UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Board to Cable/Wire	Gold	Solder	Gold	Shrouded - 4 Wall	85 °C	-55 °C	Latch Holder			Plug	Flash	0.118 in	3 mm	Flash	7 mm	0.276 in
3M (TC) P50LE-050P1-RR1-TGF	0.05 in	1.27 mm	50		All	2	Phosphor Bronze	Through Hole Right Angle	2.03 µm	80 µin	Brown	0.5 A	Center Strip Contact	2 µin	0.051 µm	UL94 V-0	Polyphenylene Sulfide (PPS)	Board to Cable/Wire	Tin	Solder	Gold	Shrouded - 4 Wall	85 °C	-55 °C	Latch Holder			Plug		0.118 in	3 mm		7 mm	0.276 in
3M (TC) P50LE-068P1-SML-DA	0.05 in	1.27 mm	68	Board Guide	All	2	Phosphor Bronze	Surface Mount			Brown	0.5 A	Center Strip Contact			UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Board to Cable/Wire	Gold	Solder	Gold	Shrouded - 4 Wall	85 °C	-55 °C	Latch Holder	0.197 in	5 mm	Plug	Flash			Flash
3M (TC) P50LE-020P1-SML-DA	0.05 in	1.27 mm	20	Board Guide	All	2	Phosphor Bronze	Surface Mount			Brown	0.5 A	Center Strip Contact			UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Board to Cable/Wire	Gold	Solder	Gold	Shrouded - 4 Wall	85 °C	-55 °C	Latch Holder	0.197 in	5 mm	Plug	Flash			Flash
3M (TC) P50LE-068P1-R1-TGF	0.05 in	1.27 mm	68		All	2	Phosphor Bronze	Through Hole	2.03 µm	80 µin	Brown	0.5 A	Center Strip Contact	2 µin	0.051 µm	UL94 V-0	Polyphenylene Sulfide (PPS)	Board to Cable/Wire	Tin	Solder	Gold	Shrouded - 4 Wall	85 °C	-55 °C	Latch Holder	0.197 in	5 mm	Plug		0.118 in	3 mm
3M (TC) P50LE-040P1-R1-DA	0.05 in	1.27 mm	40		All	2	Phosphor Bronze	Through Hole			Brown	0.5 A	Center Strip Contact			UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Board to Cable/Wire	Gold	Solder	Gold	Shrouded - 4 Wall	85 °C	-55 °C	Latch Holder	0.197 in	5 mm	Plug	Flash	0.118 in	3 mm	Flash
3M (TC) P50LE-050P1-R1-DA	0.05 in	1.27 mm	50		All	2	Phosphor Bronze	Through Hole			Brown	0.5 A	Center Strip Contact			UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Board to Cable/Wire	Gold	Solder	Gold	Shrouded - 4 Wall	85 °C	-55 °C	Latch Holder	0.197 in	5 mm	Plug	Flash	0.118 in	3 mm	Flash
3M (TC) P50LE-080P1-RR1-DA	0.05 in	1.27 mm	80		All	2	Phosphor Bronze	Through Hole Right Angle			Brown	0.5 A	Center Strip Contact			UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	Board to Cable/Wire	Gold	Solder	Gold	Shrouded - 4 Wall	85 °C	-55 °C	Latch Holder			Plug	Flash	0.118 in	3 mm	Flash	7 mm	0.276 in
3M (TC) P50LE-100P1-SML-TGF	0.05 in	1.27 mm	100	Board Guide	All	2	Phosphor Bronze	Surface Mount	2.03 µm	80 µin	Brown	0.5 A	Center Strip Contact	2 µin	0.051 µm	UL94 V-0	Polyphenylene Sulfide (PPS)	Board to Cable/Wire	Tin	Solder	Gold	Shrouded - 4 Wall	85 °C	-55 °C	Latch Holder	0.197 in	5 mm	Plug
