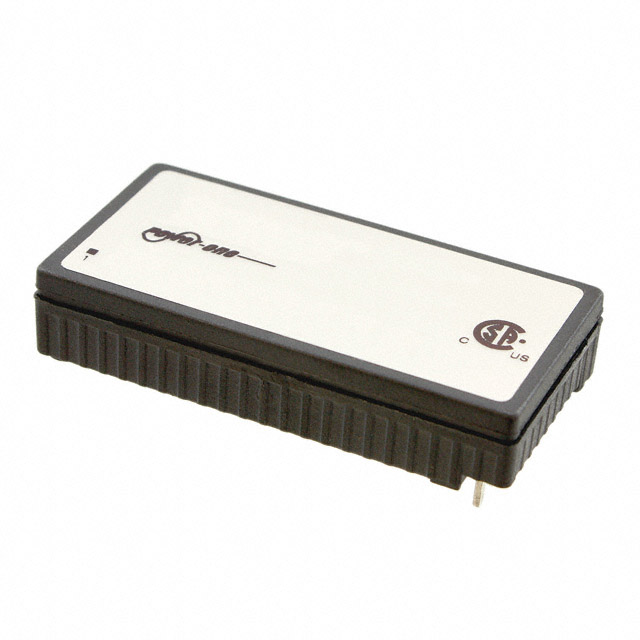

110IMX7-15-15-8G

Active

EOS Power India Private Ltd

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 7.2W 60-150VDC 15V 0.24A OUT 1&2

Search across all available documentation for this part.

Active

EOS Power India Private Ltd

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 7.2W 60-150VDC 15V 0.24A OUT 1&2

Technical Specifications

Parameters and characteristics for this part

Specification	110IMX7-15-15-8G

Applications	Railway, ITE (Commercial)
Current - Output (Max) [Max]	240 mA
Current - Output (Max) [Max]	240 mA
Efficiency	84 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	14-DIP Module
Power (Watts)	7 W
Size / Dimension [x]	2 in
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	10.4 mm
Size / Dimension [z]	0.41 "
Type	Isolated Module, Conformal Coated
Voltage - Input (Max) [Max]	150 V
Voltage - Input (Min) [Min]	60 V
Voltage - Isolation	2500 V
Voltage - Output 1	15 V
Voltage - Output 2	15 V

Isolated DC/DC Converters - Through Hole 7.2W 60-150VDC 15V 0.24A OUT 1&2

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Type	Mounting Type	Number of Outputs	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Efficiency	Voltage - Output 2	Features	Current - Output (Max)	Current - Output (Max)	Power (Watts)	Voltage - Input (Max) [Max]	Voltage - Isolation	Package / Case	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Current - Output (Max) [Max]
EOS Power India Private Ltd 110IMX7-05-05-8G	10.4 mm	2 in	50.8 mm	0.41 "	25.4 mm	25.4 mm	Conformal Coated Isolated Module	Through Hole	2	5 V	85 °C	-40 °C	ITE (Commercial) Railway	80 %	5 V	OCP OTP OVP Remote On/Off SCP UVLO	700 mA	700 mA	7 W	150 V	2500 V	14-DIP Module 9 Leads	60 V
EOS Power India Private Ltd 110IMX7-12-12-8G	10.4 mm	2 in	50.8 mm	0.41 "	25.4 mm	25.4 mm	Conformal Coated Isolated Module	Through Hole	2	12 V	85 °C	-40 °C	ITE (Commercial) Railway	83 %	12 V	OCP OTP OVP Remote On/Off SCP UVLO		300 mA	7.2 W	150 V	2500 V	14-DIP Module 9 Leads	60 V
EOS Power India Private Ltd 110IMX7-15-15-8G	10.4 mm	2 in	50.8 mm	0.41 "	25.4 mm	25.4 mm	Conformal Coated Isolated Module	Through Hole	2	15 V	85 °C	-40 °C	ITE (Commercial) Railway	84 %	15 V	OCP OTP OVP Remote On/Off SCP UVLO			7 W	150 V	2500 V	14-DIP Module	60 V	240 mA	240 mA
EOS Power India Private Ltd 110IMX7-12-12-8	10.4 mm	2 in	50.8 mm	0.41 "	25.4 mm	25.4 mm	Conformal Coated Isolated Module	Through Hole	2	12 V	85 °C	-40 °C	ITE (Commercial) Railway	80 %	12 V	OCP OTP OVP Remote On/Off SCP UVLO		300 mA	7 W	150 V	2500 V	14-DIP Module	60 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated DC/DC Converters - Through Hole 7.2W 60-150VDC 15V 0.24A OUT 1&2

Technical documentation and resources
