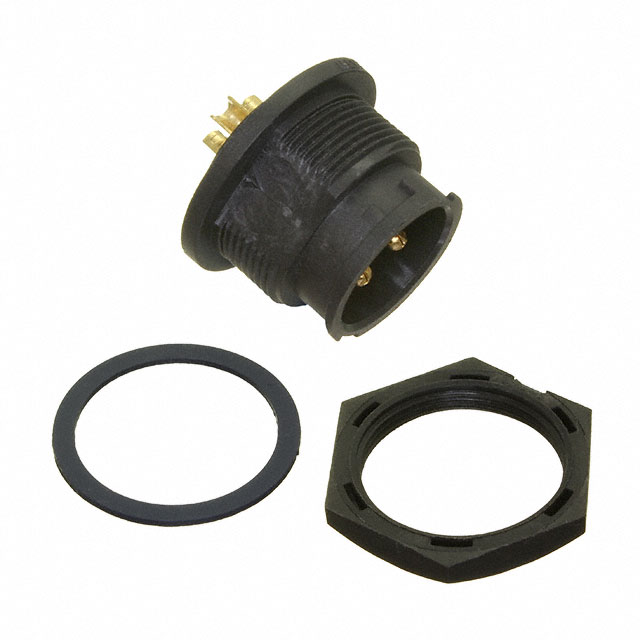

ACC-03PMMS-LC7001
ActiveAmphenol LTW
CONN RCPT MALE 3P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ACC-03PMMS-LC7001
ActiveAmphenol LTW
CONN RCPT MALE 3P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ACC-03PMMS-LC7001 |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 20 A |
| Fastening Type | Bayonet Lock |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA), Nylon, Glass Filled |
| Mounting Feature | Bulkhead - Front Side Nut |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Size - Insert | C |
| Shielding | Unshielded |
| Voltage Rating | 300 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 5.45 | |
| 10 | $ 4.95 | |||
| 25 | $ 4.69 | |||
| 50 | $ 4.58 | |||
| 100 | $ 4.36 | |||
| 250 | $ 3.82 | |||
| 450 | $ 3.71 | |||
| 950 | $ 3.16 | |||
| 2400 | $ 2.95 | |||
Description
General part information
ACC-03PMMS Series
3 Position Circular Connector Receptacle, Male Pins Solder Cup
