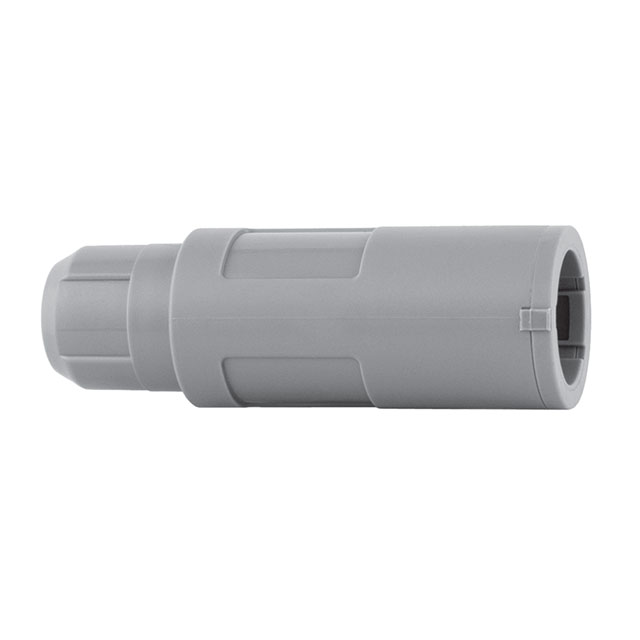

CRB.H08.GLL.C72S

Active

LEMO

INLINE RECEPTACLE 8 POS

Search across all available documentation for this part.

Active

LEMO

INLINE RECEPTACLE 8 POS

Technical Specifications

Parameters and characteristics for this part

Specification	CRB.H08.GLL.C72S

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement
Cable Opening [custom]	5.3 mm, 7.2 mm
Cable Opening [custom]	0.209 in, 0.283 in
Color	Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Current Rating (Amps)	6.5 A
Fastening Type	Detent Lock, Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C
Orientation	B
Shell Material	Polysulfone (PSU)
Shell Size - Insert	H-8
Shielding	Unshielded
Voltage Rating	250 VDC

Part	Insert Material	Current Rating (Amps)	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Connector Type	Features	Cable Opening [custom]	Cable Opening [custom]	Color	Shielding	Contact Finish - Mating	Fastening Type	Shell Size - Insert	Shell Material	Mounting Type	Voltage Rating	Applications	Ingress Protection	Orientation
LEMO CRB.H08.GLL.C72S	Polyetheretherketone (PEEK)	6.5 A	UL94 V-0	150 °C	-50 °C	8	Receptacle Female Sockets	Backshell	5.3 mm 7.2 mm	0.209 in 0.283 in	Gray	Unshielded	Gold	Detent Lock Push-Pull	H-8	Polysulfone (PSU)	Free Hanging (In-Line)	250 VDC	Automotive Industrial Medical Testing Equipment & Measurement	IP50	B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Receptacle, Female Sockets Solder Cup
