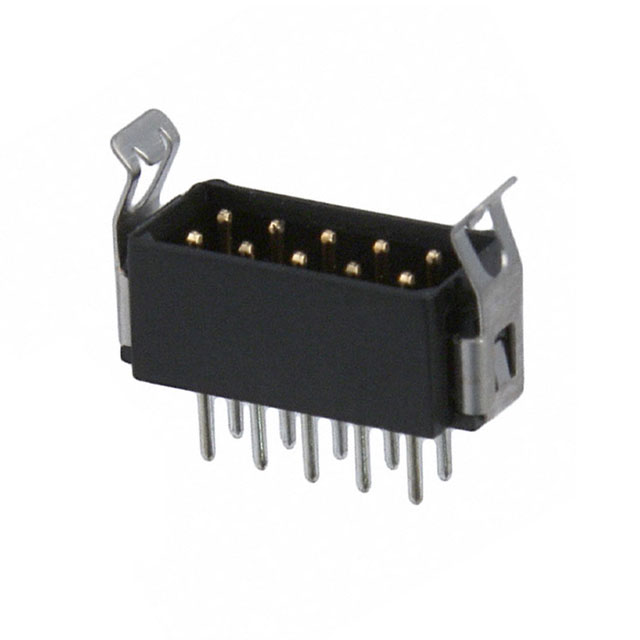

PIN HEADER, WIRE-TO-BOARD, 2 MM, 2 ROWS, 10 CONTACTS, THROUGH HOLE, DATAMATE L-TEK M80 SERIES
Deep-Dive with AI
Search across all available documentation for this part.
M80-8531042
ActiveHarwin Inc.
PIN HEADER, WIRE-TO-BOARD, 2 MM, 2 ROWS, 10 CONTACTS, THROUGH HOLE, DATAMATE L-TEK M80 SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-8531042 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 29.5 Áin |
| Contact Finish Thickness - Mating | 0.75 Ám |
| Contact Finish Thickness - Post | 3 µm |
| Contact Finish Thickness - Post | 118.1 µin |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2.2 A |
| Fastening Type | Latch Lock |
| Insulation Color | Black |
| Insulation Height | 5.56 mm |
| Insulation Height [z] | 0.219 in |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Mated Stacking Heights | 13.51 mm, 7.85 mm, 10.2 mm, 7.23 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 800 V |
M80-853 Series
| Part | Connector Type | Number of Rows | Style | Insulation Height [z] | Insulation Height | Contact Finish - Post | Contact Shape | Termination | Material Flammability Rating | Current Rating (Amps) | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Row Spacing - Mating | Row Spacing - Mating | Contact Type | Insulation Material | Contact Finish - Mating | Mated Stacking Heights | Number of Positions | Contact Material | Contact Length - Post | Contact Length - Post | Pitch - Mating [x] | Pitch - Mating [x] | Shrouding | Insulation Color | Mounting Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Voltage Rating | Number of Positions Loaded | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Header | 2 | Board to Board Cable | 0.219 in | 5.56 mm | Tin | Circular | Solder | UL94 V-0 | 2.2 A | 29.5 Áin | 0.75 Ám | Latch Lock | -55 °C | 125 °C | 0.079 in | 2 mm | Male Pin | Polyphenylene Sulfide (PPS) Glass Filled | Gold | 7.23 mm 7.85 mm 10.2 mm 13.51 mm | 10 | Phosphor Bronze | 0.118 in | 3 mm | 0.079 in | 2 mm | Shrouded - 4 Wall | Black | Through Hole | 3 µm | 118.1 µin | 800 V | All | |
Harwin Inc. | Header | 2 | Board to Board Cable | 0.219 in | 5.56 mm | Tin | Circular | Solder | UL94 V-0 | 2.2 A | 29.5 Áin | 0.75 Ám | Latch Lock | -55 °C | 125 °C | 0.079 in | 2 mm | Male Pin | Polyphenylene Sulfide (PPS) Glass Filled | Gold | 7.23 mm 7.85 mm 10.2 mm 13.51 mm | 18 | Phosphor Bronze | 0.118 in | 3 mm | 0.079 in | 2 mm | Shrouded - 4 Wall | Black | Through Hole | 3 µm | 118.1 µin | 800 V | All | |
Harwin Inc. | Header | 2 | Board to Board Cable | 0.219 in | 5.56 mm | Tin | Circular | Solder | UL94 V-0 | 2.2 A | 29.5 Áin | 0.75 Ám | Latch Lock | -55 °C | 125 °C | 0.079 in | 2 mm | Male Pin | Polyphenylene Sulfide (PPS) Glass Filled | Gold | 7.23 mm 7.85 mm 10.2 mm 13.51 mm | 26 | Phosphor Bronze | 0.118 in | 3 mm | 0.079 in | 2 mm | Shrouded - 4 Wall | Black | Through Hole | 3 µm | 118.1 µin | 800 V | All | |
Harwin Inc. | Header | 2 | Board to Board Cable | 0.219 in | 5.56 mm | Tin | Circular | Solder | UL94 V-0 | 2.2 A | 29.5 Áin | 0.75 Ám | Latch Lock | -55 °C | 125 °C | 0.079 in | 2 mm | Male Pin | Polyphenylene Sulfide (PPS) Glass Filled | Gold | 7.23 mm 7.85 mm 10.2 mm 13.51 mm | 4 | Phosphor Bronze | 0.118 in | 3 mm | 0.079 in | 2 mm | Shrouded - 4 Wall | Black | Through Hole | 3 µm | 118.1 µin | 800 V | All | |
Harwin Inc. | Header | 2 | Board to Board Cable | 0.219 in | 5.56 mm | Circular | Solder | UL94 V-0 | 2.2 A | 29.5 Áin | 0.75 Ám | Latch Lock | -55 °C | 125 °C | 0.079 in | 2 mm | Male Pin | Polyphenylene Sulfide (PPS) Glass Filled | Gold | 7.23 mm 7.85 mm 10.2 mm 13.51 mm | Phosphor Bronze | 0.118 in | 3 mm | 0.079 in | 2 mm | Shrouded - 4 Wall | Black | Through Hole | 800 V | All | 16 | ||||
Harwin Inc. | Header | 2 | Board to Board Cable | 0.219 in | 5.56 mm | Tin | Circular | Solder | UL94 V-0 | 2.2 A | 29.5 Áin | 0.75 Ám | Latch Lock | -55 °C | 125 °C | 0.079 in | 2 mm | Male Pin | Polyphenylene Sulfide (PPS) Glass Filled | Gold | 7.23 mm 7.85 mm 10.2 mm 13.51 mm | 34 | Phosphor Bronze | 0.118 in | 3 mm | 0.079 in | 2 mm | Shrouded - 4 Wall | Black | Through Hole | 3 µm | 118.1 µin | 800 V | All |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M80-853 Series
Connector Header Through Hole 10 position 0.079" (2.00mm)
