PT07SE16-26P-027

Active

Amphenol Industrial Operations

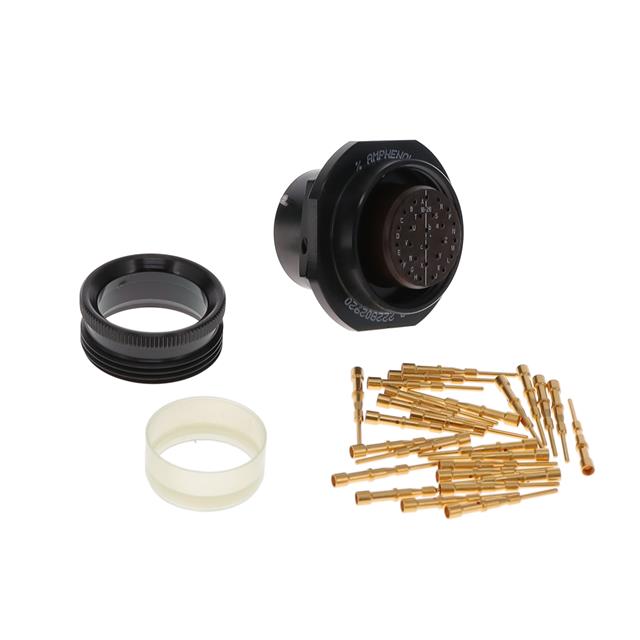

PTSE 26C 26#20 PIN RECP

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

PTSE 26C 26#20 PIN RECP

Technical Specifications

Parameters and characteristics for this part

Specification	PT07SE16-26P-027

Applications	Military, Mass Transit, Instrumentation, Aerospace, Industrial
Backshell Material, Plating	Black Zinc Cobalt, Aluminum
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	26
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Black Zinc Cobalt
Shell Material	Aluminum
Shell Size - Insert [Max]	26
Shell Size - Insert [Min]	16
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 VAC

Part	Mounting Feature	Shell Material	Primary Material	Contact Finish - Mating	Color	Backshell Material, Plating	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Contact Material	Shielding	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Termination	Qualification	Shell Finish	Ingress Protection	Orientation	Fastening Type	Connector Type	Applications	Voltage Rating	Features
Amphenol Industrial Operations PT07SE22-21P-027	Bulkhead - Front Side Nut	Aluminum	Metal	Gold	Black	Aluminum Black Zinc Cobalt	21	22	Copper Alloy	Unshielded	21	-55 °C	125 °C	Neoprene	Crimp	MIL-DTL-26482 Series I	Black Zinc Cobalt	Environment Resistant	N	Bayonet Lock	Male Pins Receptacle	Aerospace Communication Systems Industrial Instrumentation Mass Transit
Amphenol Industrial Operations PT07SE16-26P-027	Bulkhead - Front Side Nut	Aluminum	Metal	Gold	Black	Aluminum Black Zinc Cobalt	26	16	Copper Alloy	Unshielded	26	-55 °C	125 °C	Neoprene	Crimp	MIL-DTL-26482 Series I	Black Zinc Cobalt	Environment Resistant	N	Bayonet Lock	Male Pins Receptacle	Aerospace Industrial Instrumentation Mass Transit Military	600 VAC	Backshell
Amphenol Industrial Operations PT07SE22-21S	Bulkhead - Front Side Nut	Aluminum	Metal	Gold	Olive Drab	Aluminum Olive Drab Cadmium	21	22	Copper Alloy	Unshielded	21	-55 °C	125 °C	Neoprene	Crimp	MIL-DTL-26482 Series I	Olive Drab Chromate over Cadmium	Environment Sealed	N	Bayonet Lock	Receptacle Female Sockets	Aerospace Communication Systems Industrial Instrumentation Mass Transit		Backshell

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 67.12

General part information

26 Position Circular Connector Receptacle, Male Pins Crimp

Technical documentation and resources
