25633601RP2

Active

MH Connectors

25633601RP2 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

MH Connectors

25633601RP2 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	25633601RP2

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	100 µin
Contact Finish Thickness - Post	2.54 µm
Contact Length - Post	2.5 mm
Contact Length - Post	0.098 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.3 mm
Insulation Height	0.169 "
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	36
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Termination	Solder

Part	Insulation Height	Insulation Height	Contact Finish - Mating	Contact Shape	Fastening Type	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions Loaded	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Contact Material	Contact Finish - Post	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post	Contact Length - Post	Contact Type	Termination	Mounting Type	Contact Finish Thickness - Mating	Insulation Color	Number of Positions
MH Connectors 25633601RP2	4.3 mm	0.169 "	Gold	Square	Push-Pull	0.079 in	2 mm	All	Receptacle	100 µin	2.54 µm	1	Phosphor Bronze	Tin	UL94 V-0	105 ░C	-40 °C	2.5 mm	0.098 in	Female Socket	Solder	Through Hole	Flash	Black	36

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

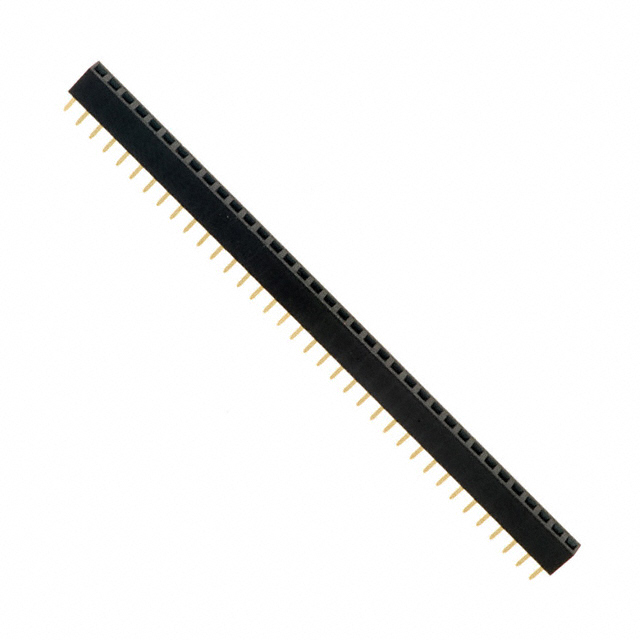

36 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
