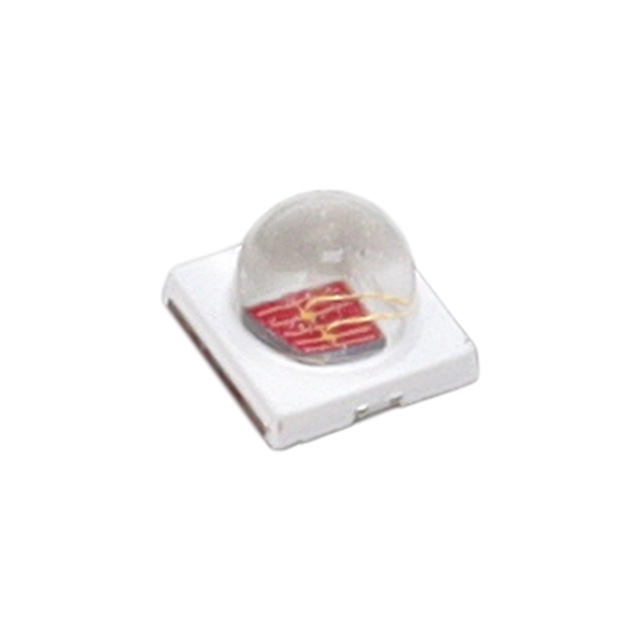

ASM6-SR90-AHK0H
ActiveBroadcom Limited
LED ASM6-SXXX-XXXXH 625NM 3SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ASM6-SR90-AHK0H
ActiveBroadcom Limited
LED ASM6-SXXX-XXXXH 625NM 3SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ASM6-SR90-AHK0H |
|---|---|
| Color | Red |
| Current - Max [Max] | 700 mA |
| Current - Test | 350 mA |
| Height - Seated (Max) [Max] [z] | 0.106 in |
| Height - Seated (Max) [Max] [z] | 2.7 mm |
| Lumens/Watt @ Current - Test | 80 lm/W |
| Luminous Flux @ Current/Temperature | 62 lm |
| Mounting Type | Surface Mount |
| Package / Case | 3-SMD, No Lead |
| Size / Dimension [x] | 3.45 mm |
| Size / Dimension [x] | 0.136 in |
| Size / Dimension [y] | 0.136 in |
| Size / Dimension [y] | 3.45 mm |
| Supplier Device Package | 3-SMD |
| Thermal Resistance of Package [custom] | 4 °C/W |
| Viewing Angle [custom] | 90 ° |
| Voltage - Forward (Vf) (Typ) | 2.2 V |
| Wavelength | 625 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.04 | |
| Digi-Reel® | 1 | $ 3.04 | ||
| Tape & Reel (TR) | 20000 | $ 1.17 | ||
Description
General part information
ASM6-SR90 Series
LED Lighting Color ASM6-Sxxx-xxxxH Red 625nm (617nm ~ 635nm) 3-SMD, No Lead
