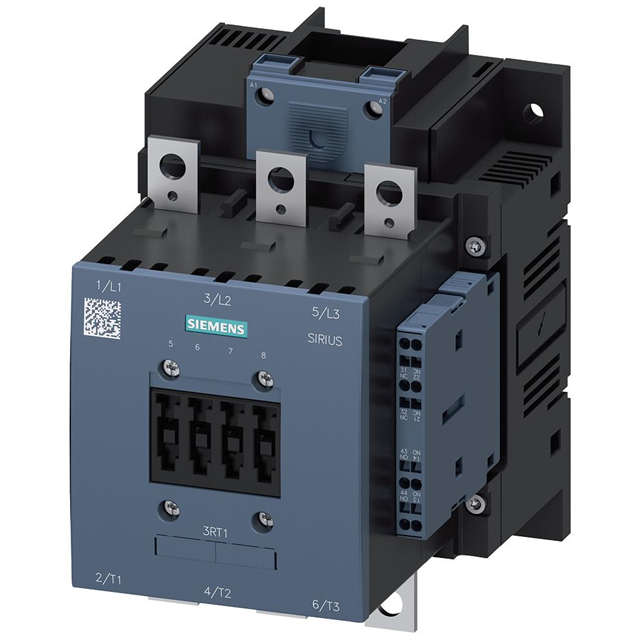

3RT10566AP380PA5

Active

Siemens

CONTACTOR. 90KW/400V/AC-3.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet SIRIUS Contactor Fail Safe Brochure +2

3RT10566AP380PA5

Active

Siemens

CONTACTOR. 90KW/400V/AC-3.

Deep-Dive with AI

DocumentsDatasheet SIRIUS Contactor Fail Safe Brochure +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3RT10566AP380PA5

Coil Power	360 W
Coil Voltage [Max]	240 VAC
Coil Voltage [Min]	220 VAC
Contact Form	3PST-NO (3 Form A)
Contact Rating (Current)	185 A
Features	Auxiliary Contacts
Mounting Type	Chassis Mount, DIN Rail
Operate Time	95 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Release Time	60 ms
Switching Voltage	1000 VAC
Termination Style	Screw Terminal

3RT1056 Series

Part	Features	Switching Voltage	Termination Style	Release Time	Coil Voltage [Min]	Coil Voltage [Max]	Mounting Type	Operate Time	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating (Current)	Contact Form	Coil Power	Coil Voltage	Must Operate Voltage
Siemens 3RT10566AV36	Auxiliary Contacts	1000 VAC	Screw Terminal	60 ms	380 VAC/DC	420 VAC/DC	Chassis Mount DIN Rail	95 ms	-25 °C	60 °C	185 A	3PST-NO (3 Form A)	360 W
Siemens 3RT10566SP363PA0	Auxiliary Contacts	1000 VAC	Screw Terminal	130 ms	200 VAC/DC	277 VAC	Chassis Mount DIN Rail	75 ms	-25 °C	60 °C	185 A	3PST-NO (3 Form A)	320 W
Siemens 3RT10566NB363PA0	Auxiliary Contacts	1000 VAC	Screw Terminal	90 ms	21 VAC/DC	27.3 VAC/DC	Chassis Mount DIN Rail	75 ms	-25 °C	60 °C	185 A	3PST-NO (3 Form A)	320 W
Siemens 3RT10562XB460LA2	Auxiliary Contacts	1000 VAC	Screw Terminal	90 ms			Chassis Mount DIN Rail	75 ms	-40 °C	70 °C	185 A	3PST-NO (3 Form A)	320 W	24 VDC	16.8 VDC
Siemens 3RT10566AT36	Auxiliary Contacts	1000 VAC	Screw Terminal	60 ms	575 VAC	600 VAC	Chassis Mount DIN Rail	95 ms	-25 °C	60 °C	185 A	3PST-NO (3 Form A)	360 W
Siemens 3RT10566NB36	Auxiliary Contacts	1000 VAC	Screw Terminal	90 ms	21 VAC/DC	27.3 VAC/DC	Chassis Mount DIN Rail	75 ms	-25 °C	60 °C	185 A	3PST-NO (3 Form A)	320 W
Siemens 3RT10566AS36	Auxiliary Contacts	1000 VAC	Screw Terminal	60 ms	500 VAC/DC	550 VAC/DC	Chassis Mount DIN Rail	95 ms	-25 °C	60 °C	185 A	3PST-NO (3 Form A)	360 W
Siemens 3RT10566AD36	Auxiliary Contacts	1000 VAC	Screw Terminal	60 ms	42 VAC/DC	48 VAC/DC	Chassis Mount DIN Rail	95 ms	-25 °C	60 °C	185 A	3PST-NO (3 Form A)	360 W
Siemens 3RT10562AF36	Auxiliary Contacts	1000 VAC	Screw Terminal	60 ms	110 VAC/DC	127 VAC/DC	Chassis Mount DIN Rail	95 ms	-25 °C	60 °C	185 A	3PST-NO (3 Form A)	360 W
Siemens 3RT10566AP380PA5	Auxiliary Contacts	1000 VAC	Screw Terminal	60 ms	220 VAC	240 VAC	Chassis Mount DIN Rail	95 ms	-25 °C	60 °C	185 A	3PST-NO (3 Form A)	360 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1361.82
