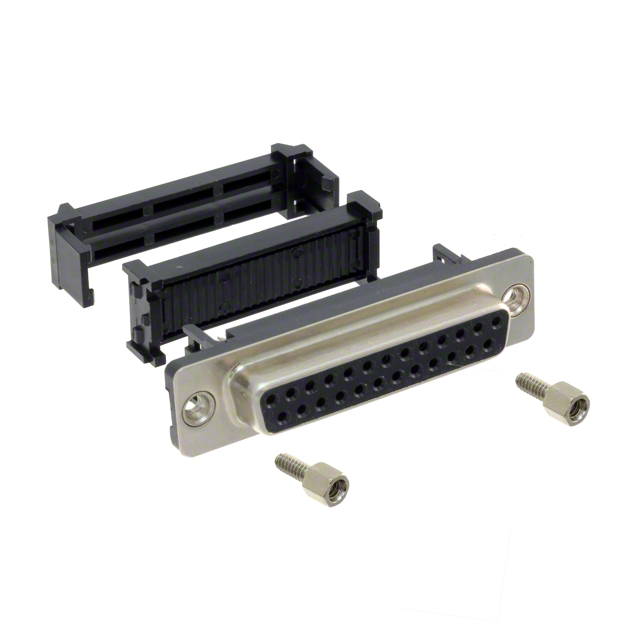

410F0-25-1-004S
ActiveCnC Tech, LLC
CONN D-SUB RCPT 25POS IDC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
410F0-25-1-004S
ActiveCnC Tech, LLC
CONN D-SUB RCPT 25POS IDC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 410F0-25-1-004S |
|---|---|
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Type | Signal |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Feed Through, Strain Relief |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DB, B |
| Shell Size, Connector Layout [custom] | 3 |
| Termination | IDC, Ribbon Cable |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.74 | |
| 10 | $ 3.39 | |||
| 25 | $ 3.21 | |||
| 50 | $ 3.14 | |||
| 100 | $ 2.99 | |||
| 250 | $ 2.62 | |||
| 850 | $ 2.32 | |||
| 1700 | $ 2.09 | |||
| 2550 | $ 2.02 | |||
Description
General part information
410F0-25 Series
25 Position D-Sub Receptacle, Female Sockets Connector
