WR95E1000LCP-F(R6B)

Active

GlobTek, Inc.

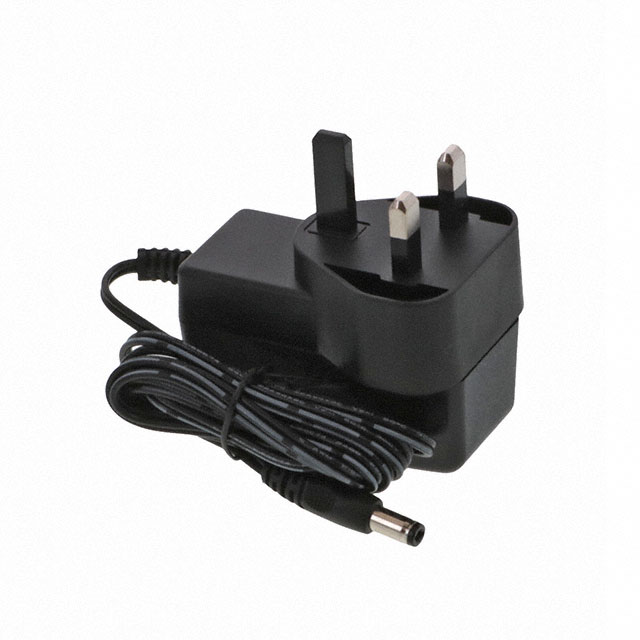

AC/DC WALL MOUNT ADAPTER 12V 12W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 12V 12W

Technical Specifications

Parameters and characteristics for this part

Specification	WR95E1000LCP-F(R6B)

Applications	ITE (Commercial)
Approval Agency	CE, LPS, EAC, UKRSepro, CB
Cord Length	60.2 in
Cord Length	1.53 m
Current - Output (Max) [Max]	1 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	BS 1363
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Polarization	Positive Center
Power (Watts)	12 W
Region Utilized	United Kingdom
Size / Dimension [x]	2.72 "
Size / Dimension [x]	69 mm
Size / Dimension [y]	49 mm
Size / Dimension [y]	1.93 in
Size / Dimension [z]	1.93 in
Size / Dimension [z]	49 mm
Standard Number	60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

Part	Input Connector	Efficiency	Power (Watts)	Output Connector	Output Connector [diameter]	Output Connector [x]	Form	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	No Load Power Consumption [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Input Type	Standard Number	Current - Output (Max) [Max]	Approval Agency	Region Utilized	Polarization	Cord Length	Cord Length	Applications	Output Connector [z]
GlobTek, Inc. WR95E1000LCP-F(R6B)	BS 1363	Level VI	12 W	Barrel Plug	2.5 mm 5.5 mm	11 mm	Wall Mount (Class II)	12 V	90 VAC	264 VAC	75 mW	49 mm	2.72 "	1.93 in	1.93 in	69 mm	49 mm	Fixed Blade	60950-1	1 A	CB CE EAC LPS UKRSepro	United Kingdom	Positive Center	60.2 in	1.53 m	ITE (Commercial)
GlobTek, Inc. WR95E1000CCP-F(R6B)	BS 1363	Level VI	12 W	Barrel Plug	2.1 mm 5.5 mm		Wall Mount (Class II)	12 V	90 VAC	264 VAC	75 mW	49 mm	2.72 "	1.93 in	1.93 in	69 mm	49 mm	Fixed Blade	60950-1	1 A	CB CE EAC LPS UKRSepro	United Kingdom	Positive Center	59 in	1.5 m	ITE (Commercial)	11 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12V 12 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input

Technical documentation and resources
